MEASURING INSTRUMENTS
NEW 2025

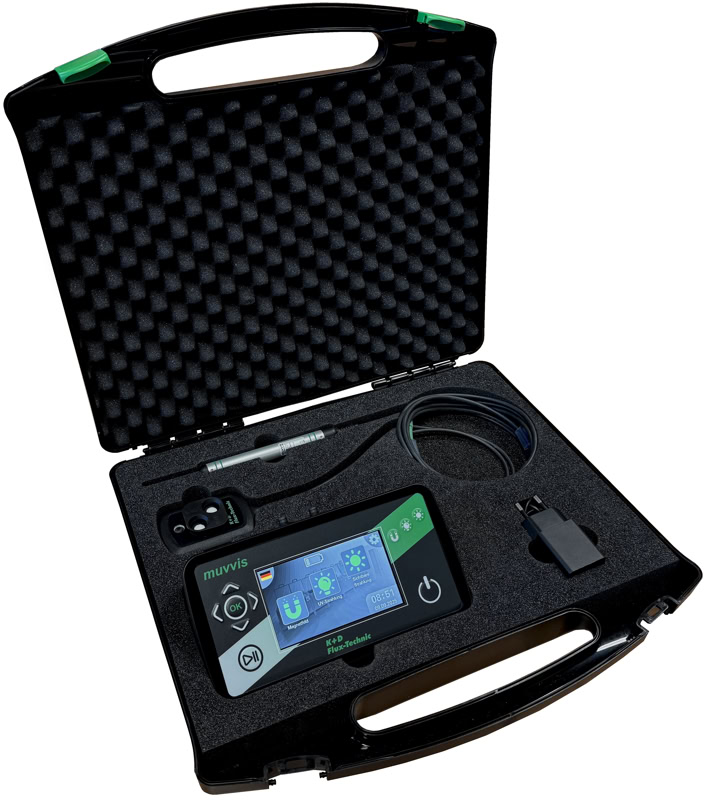

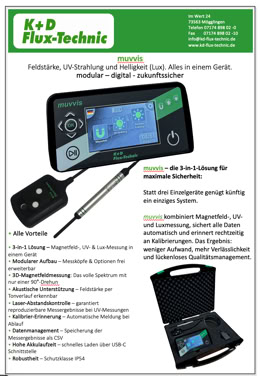

muvvis 3-in-1 measuring device FIELD STRENGTH, UV- and WHITE LIGHT

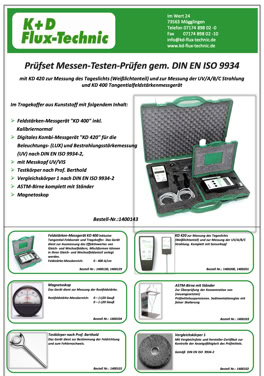

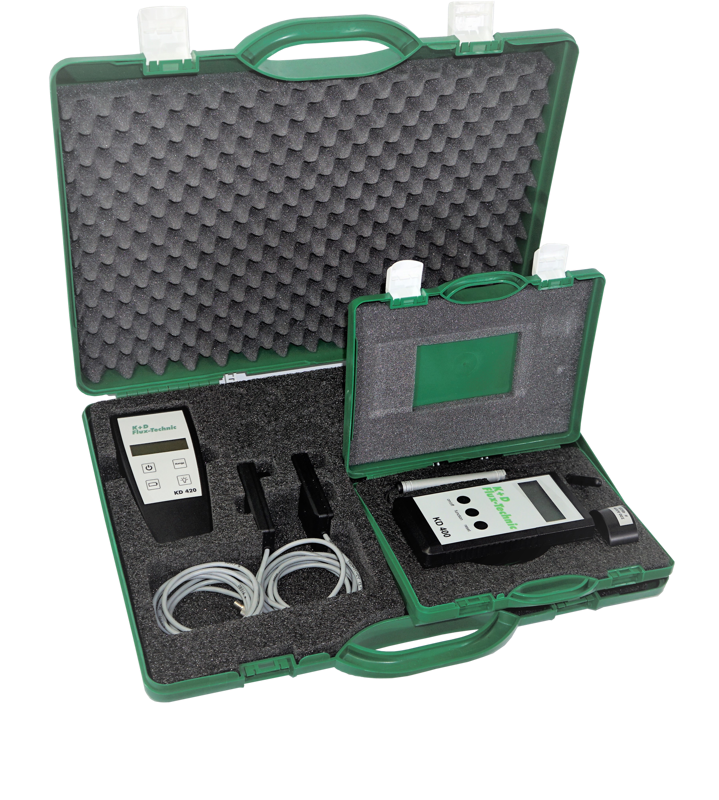

Test-Set MTP-2
Plastic carrying case with the following contents:
KD 400 field strength meter incl. calibration standard
KD 420 digital combination meter for illuminance (lux) and
irradiance (UV) measurement in accordance with DIN EN ISO 9934-2 with UV/VIS measuring head
Comparison body 1 according to DIN EN ISO 9934-2
(formerly MTU 3)
ASTM bulb with stainless steel stand
Magnetoscope

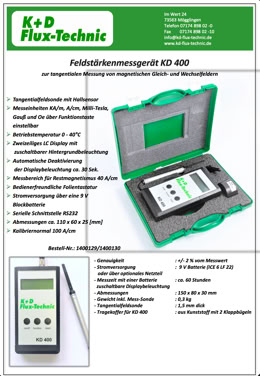

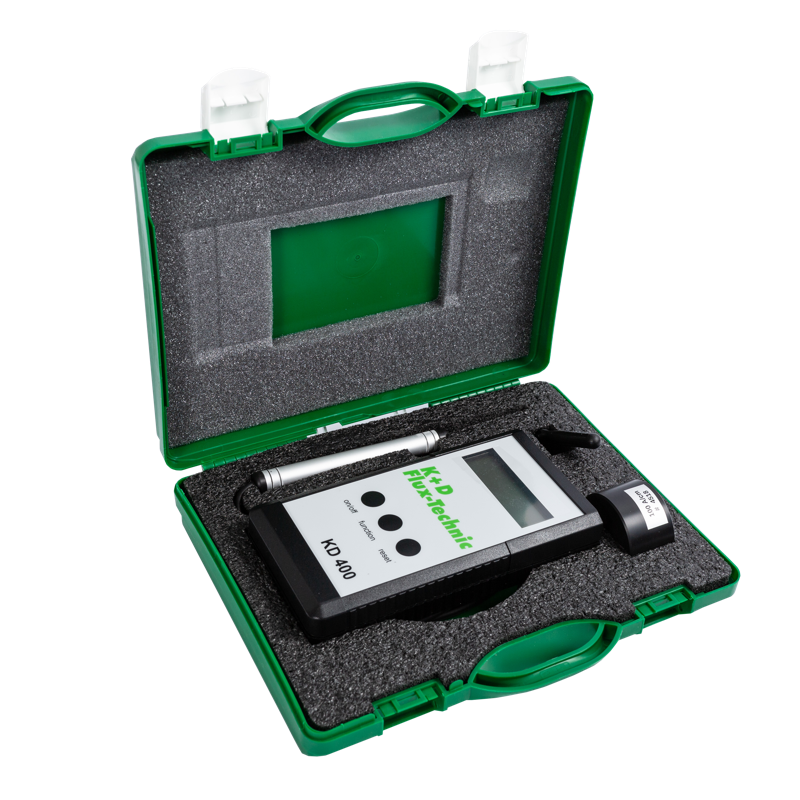

Field strength meter KD 400
Plastic carrying case with the following contents:
KD 400 field strength meter with tangential field probe and calibration standard.
For measuring the effective value of DC and AC magnetic fields in accordance with
DIN EN ISO 9934
Accuracy +- 2%
Measuring ranges from 0-400 A/cm
Digital LCD display with display lighting
Power supply: 9V battery

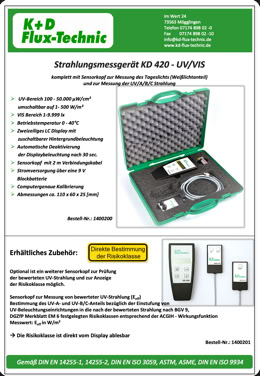

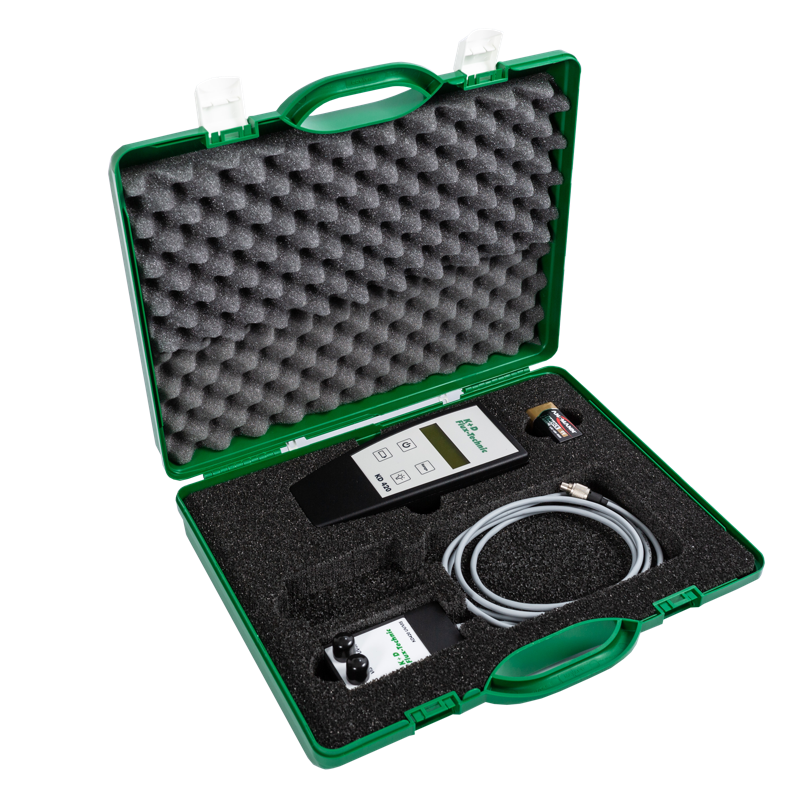

Combination device KD 420 (UV/VIS)
Plastic carrying case with the following contents:
KD 420 UV/VIS combination device with dual measuring head
2 sensors for determining the following in accordance with DIN EN ISO 9934:
1. UV intensity
Measured value 100-50000 µW/cm(2)
2. VIS measurement of daylight (visible light)
Measured value -9999 lx (lux)
Digital LCD display with display lighting
Power supply: 9V battery
Comparator 1 (formerly MTU3)
For checking the display capability of the test equipment in accordance with DIN EN ISO 9934-2
With comparison photo and manufacturer's certificate

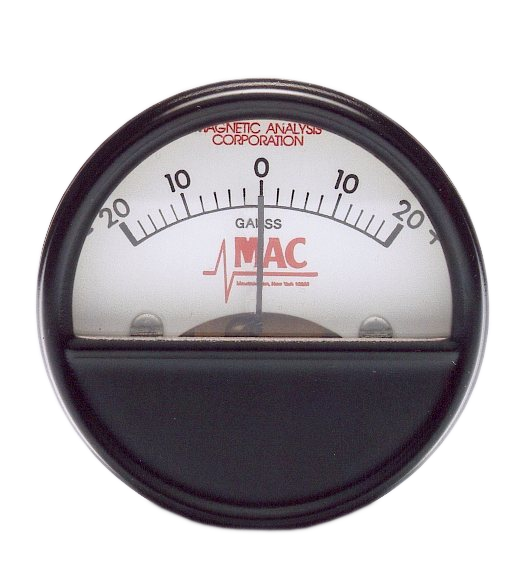

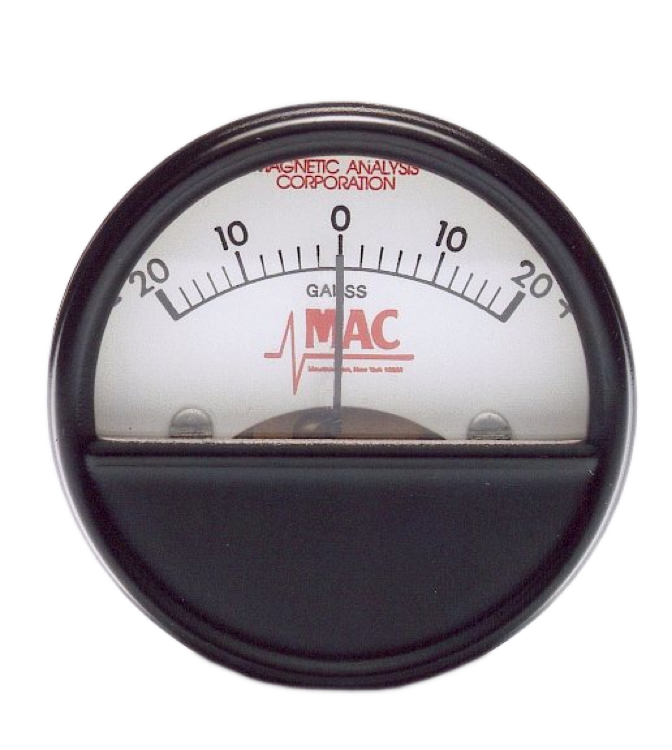

Gaussmeter
Or Gauss meter. For displaying residual fields in ferromagnetic materials.
Mechanical movement from -20 Gauss to +20 Gauss

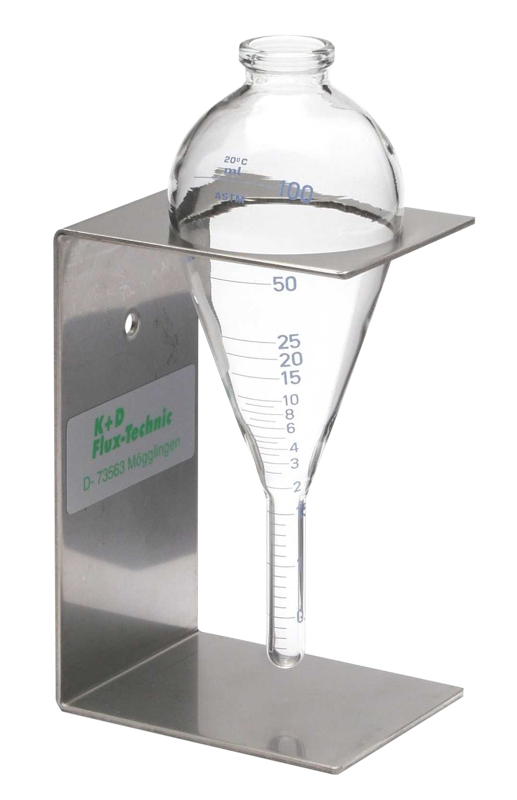

ASTM BULB
The ASTM bulb is used to monitor the concentration of the test medium when preparing a new test medium.

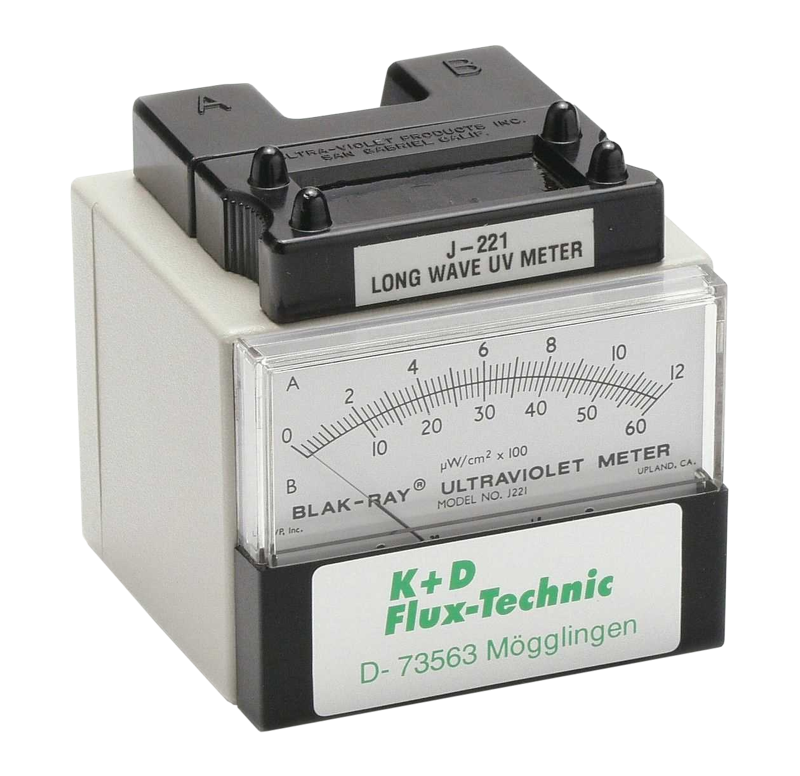

UV Intensitätsmessgerät J221
For measuring long-wave UV radiation.
Two measuring ranges:
A 0 - 1200 µW/cm2
B 0 - 6000 µW/cm2
With pinhole aperture:
A 0 - 6000 µW/cm2
B 0 - 30000 µW/cm2

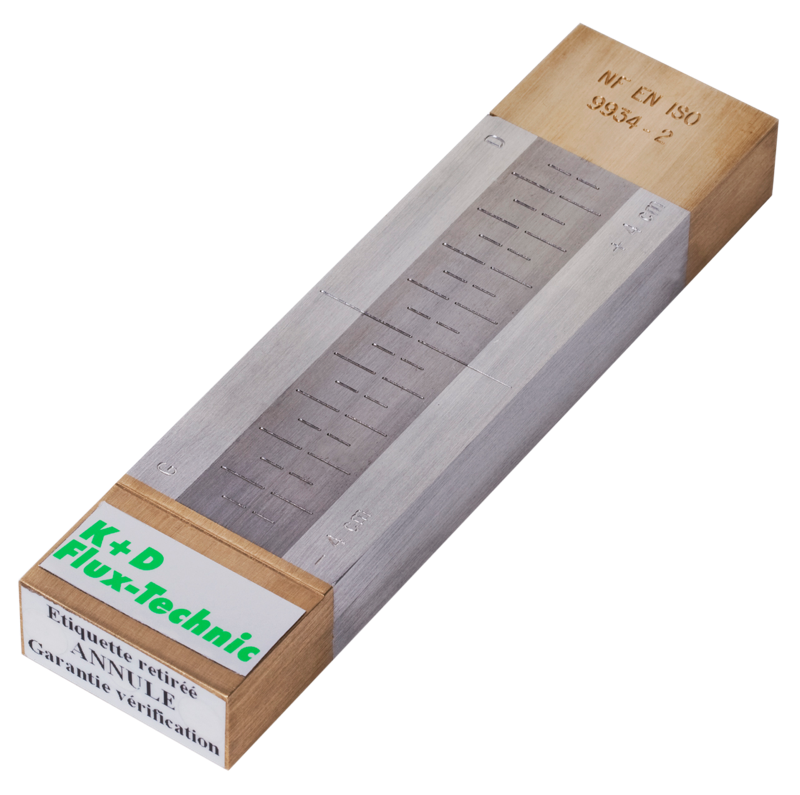

Comparator 2
For checking the display capability of the test equipment in accordance with DIN EN ISO 9934-2
With manufacturer's certificate

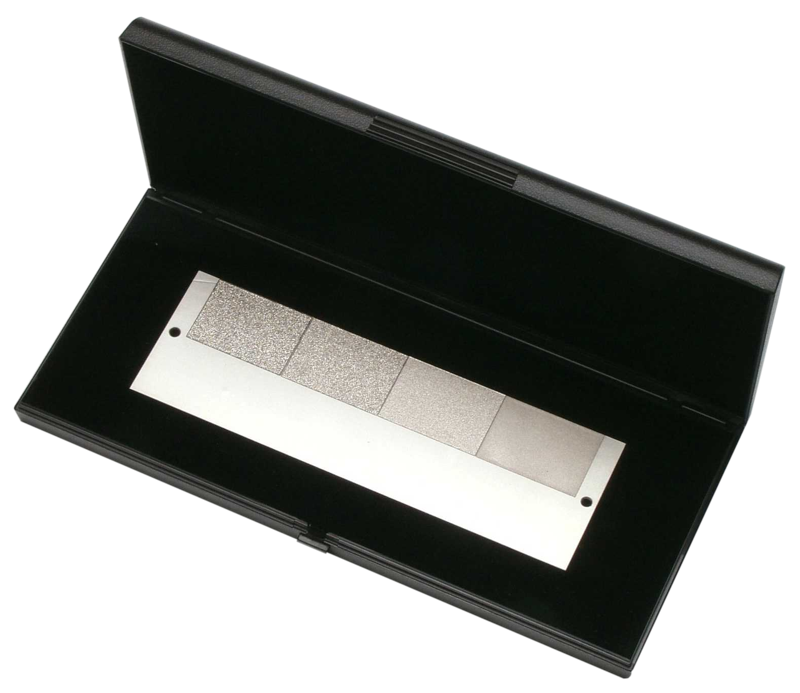

Control body 2
For checking the wetting of the test medium in accordance with DIN EN ISO 3452 Penetration - dye penetration test.
With manufacturer's certificate
