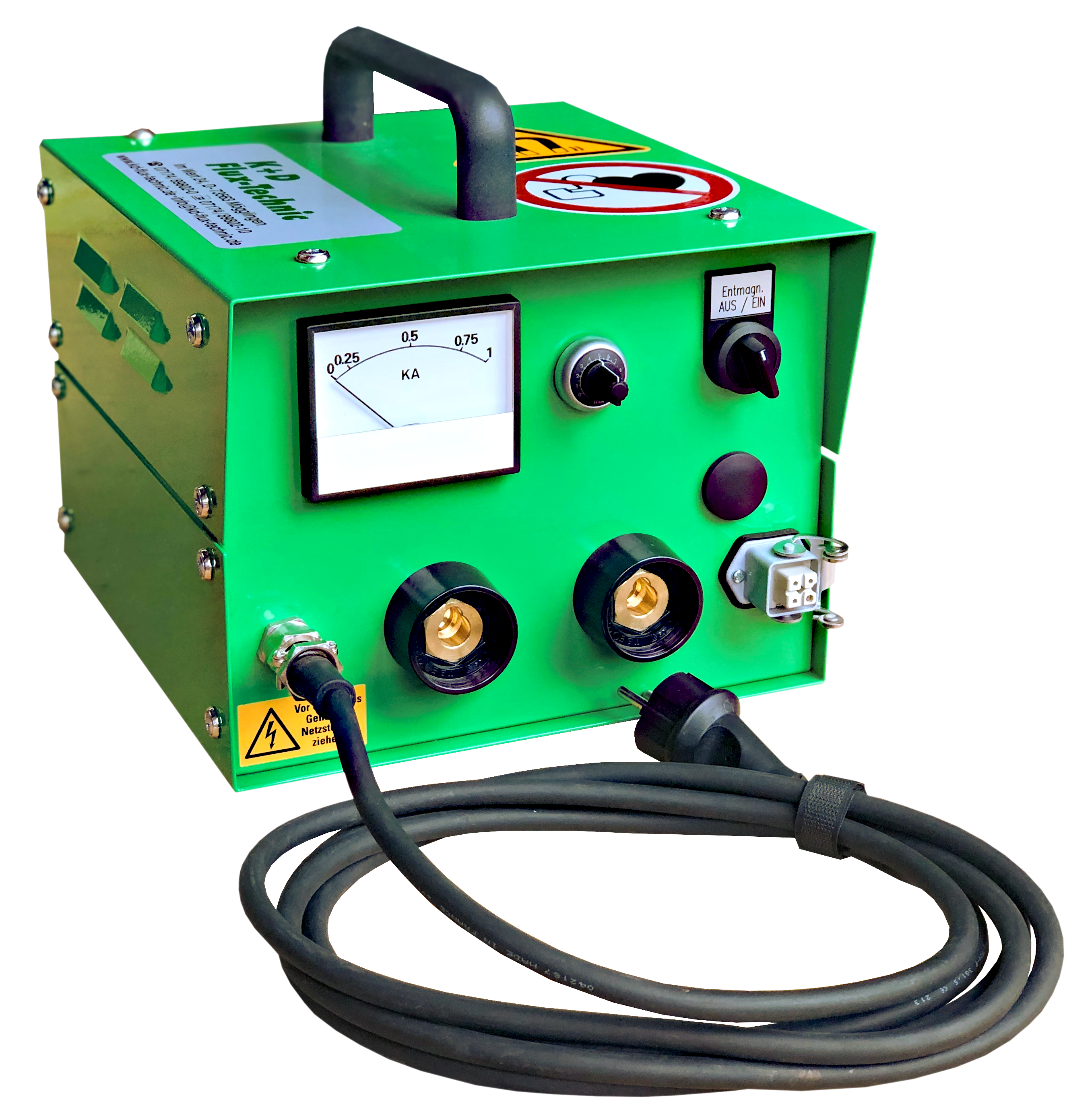

K+D Portaflux 1000
HIGH-CURRENT GENERATOR
portable, alternating current 1000 Aeff continuously adjustable,
mains connection 230V/50 Hz,
integrated constant current control and demagnetization

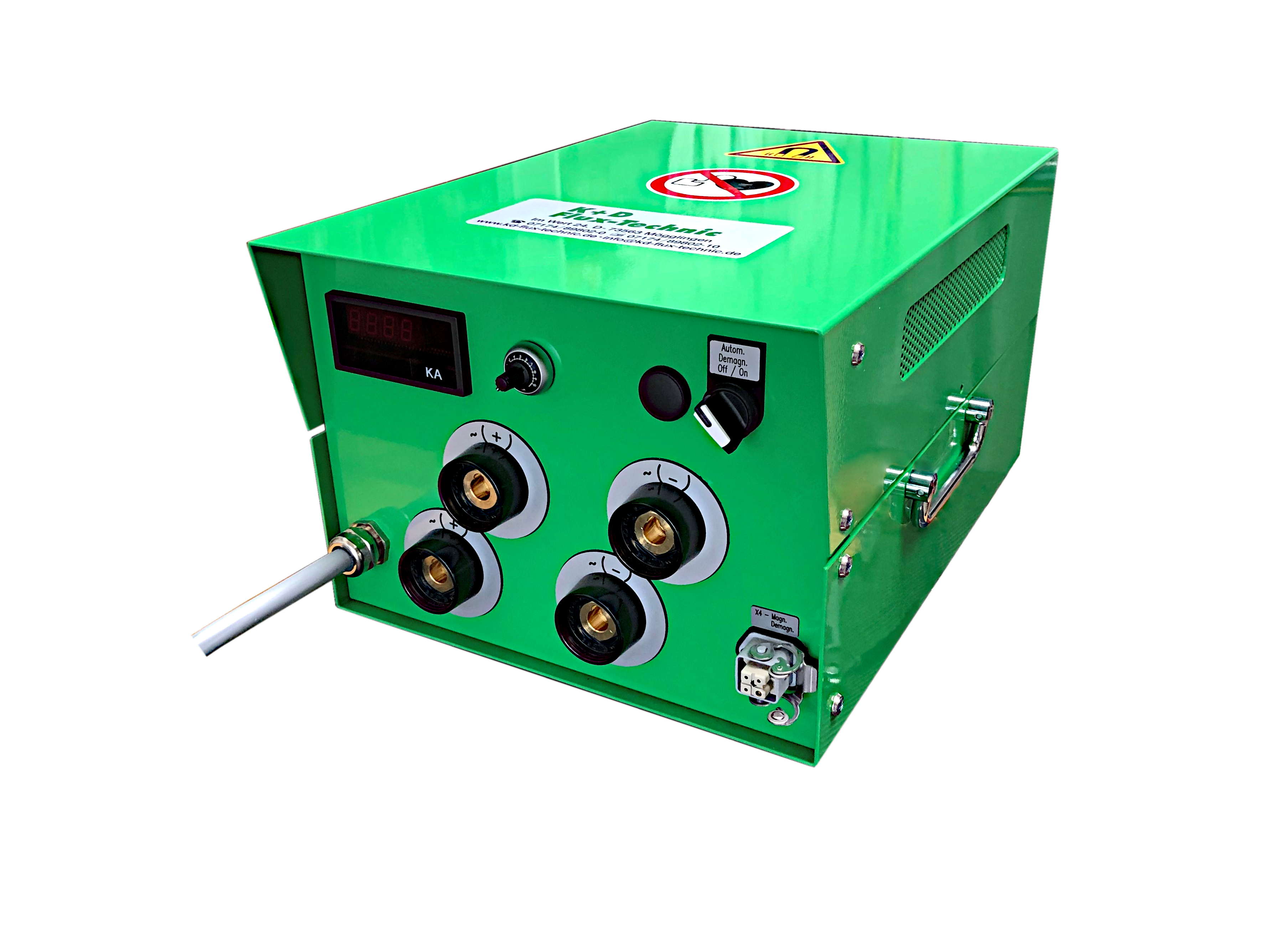

K+D Portaflux 2000
HIGH-CURRENT GENERATOR
Portable, alternating current 2000 Aeff continuously adjustable,
mains connection 400V/50 Hz,
integrated constant current control and demagnetization

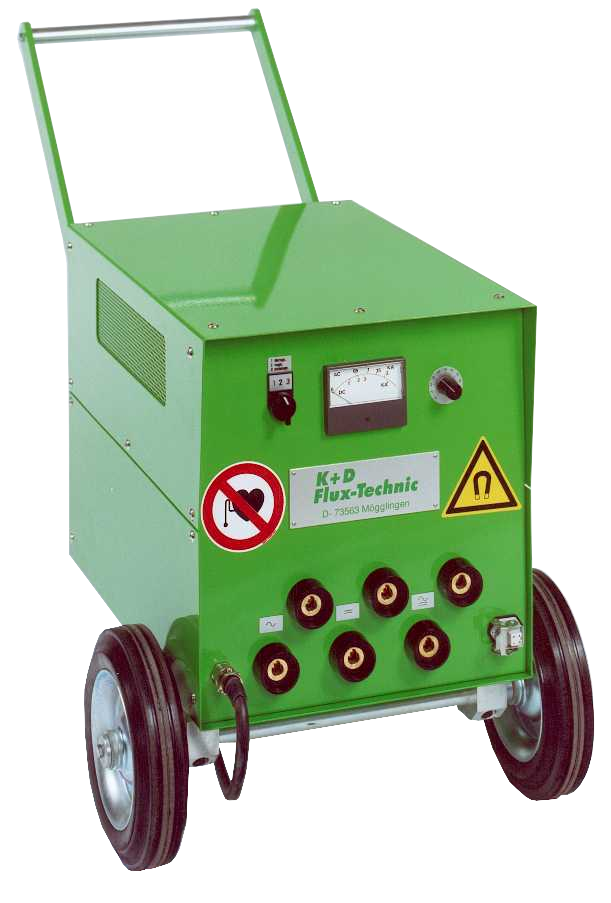

K+D Portaflux 4000 und Portaflux 4000G
PORTAFLUX 4000
Portable, AC 4000 A peak continuously adjustable,
mains connection 400V/50 Hz, integrated constant current control and demagnetization
PORTAFLUX 4000G Portable, AC 4000 A peak,
switchable to half-wave DC 4000 A peak,
continuously adjustable, mains connection 400V/50 Hz,
integrated constant current control and demagnetization

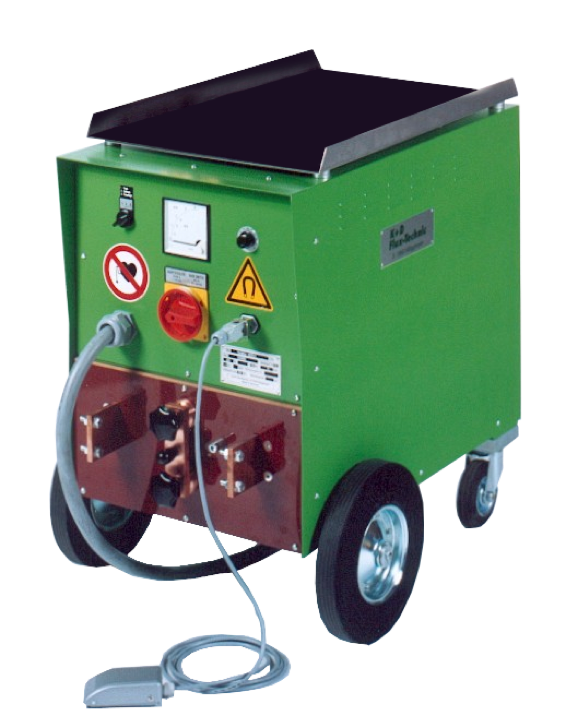

K+D Portaflux 6000 und Portaflux 6000G
PORTAFLUX 6000
Portable, AC 6000 A peak continuously adjustable,
mains connection 400V/50 Hz, integrated constant current control and demagnetization
PORTAFLUX 6000G Portable, AC 6000 A peak,
switchable to half-wave DC 4000 A peak,
continuously adjustable, mains connection 400V/50 Hz, integrated constant current control and demagnetization

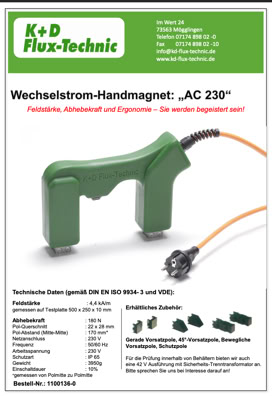

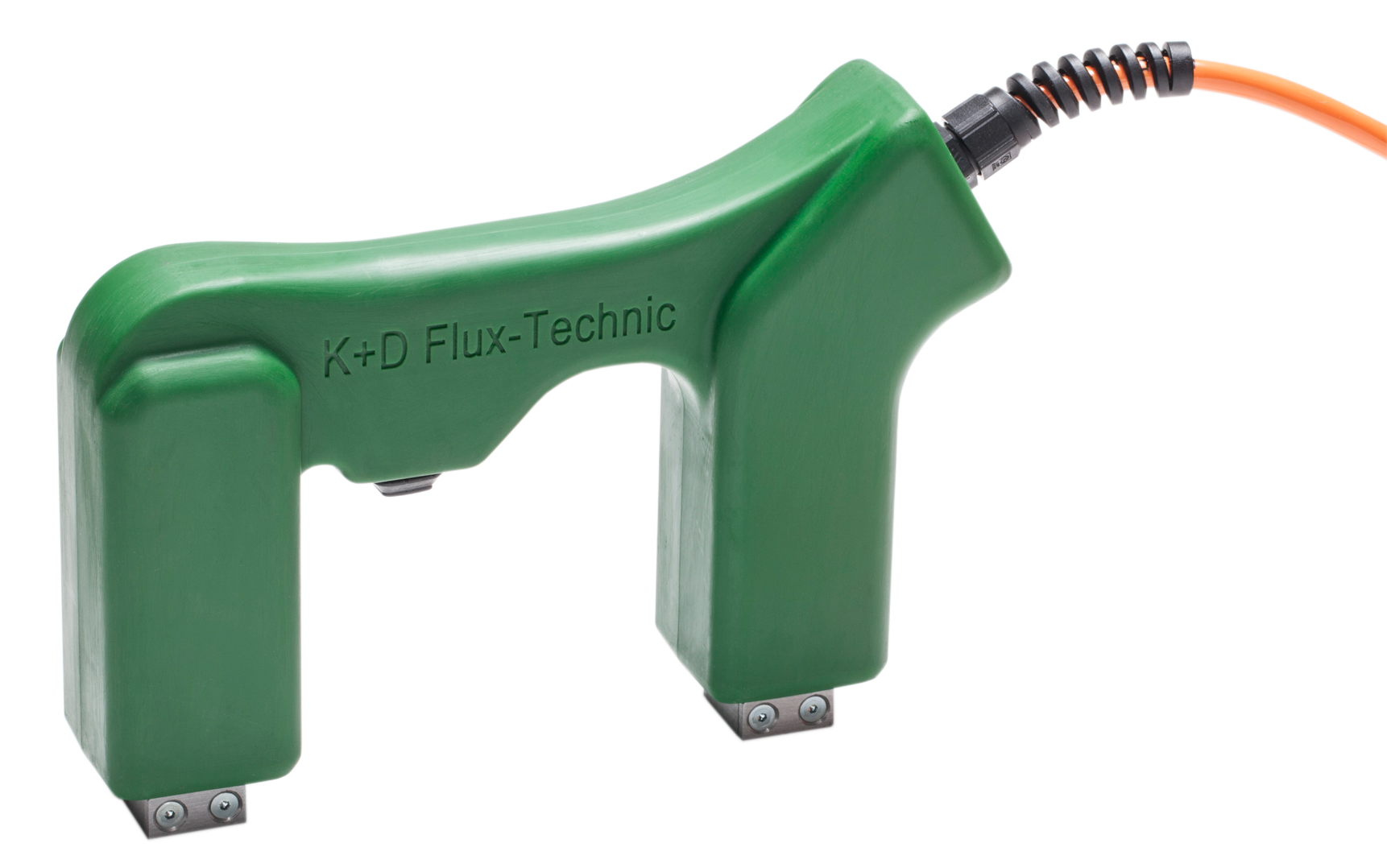

K+D AC 230 V3
Field strength: 4.4 kA/m measured on test plate
500 x 250 x 10 mm
Lifting force: 180 N
Pole cross-section: 22 x 28 mm
Pole spacing (center-to-center): 170 mm*
Mains connection: 230 V / Frequency: 50/60 Hz
Operating voltage: 230 V
Weight: 3850 g
Protection class: IP 65

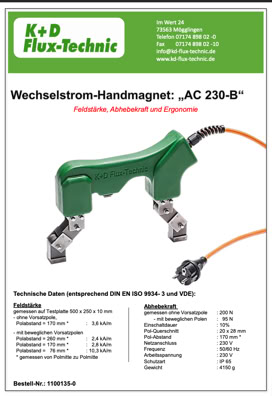

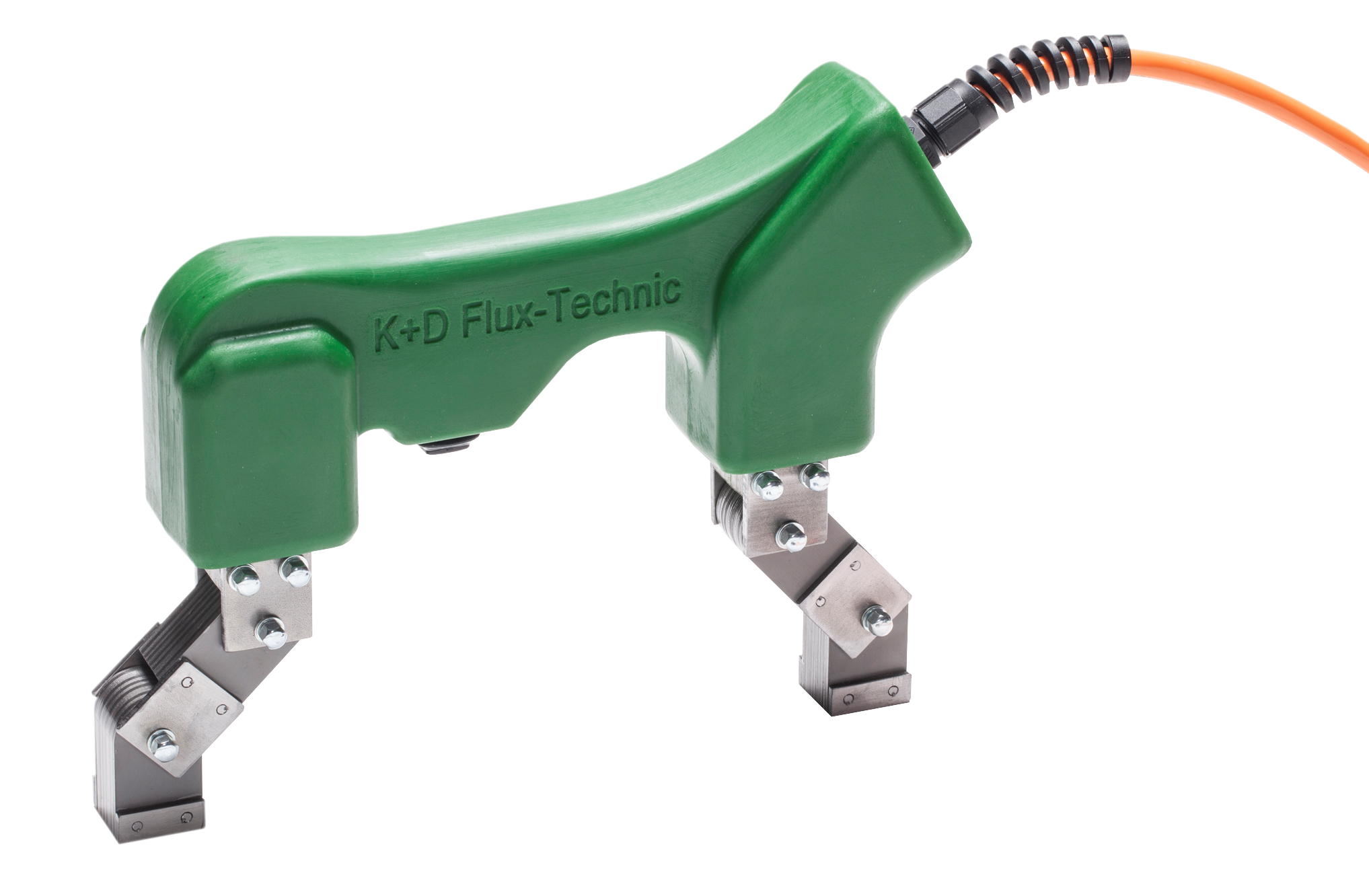

K+D AC 230-B V3
Field strength: 2.4 kA/m to 10.3 kA/m depending on the selected attachment poles. Measured on a test plate measuring 500 x 250 x 10 mm
Lifting force: 180 N
Pole cross-section: 22 x 28 mm
Pole spacing (center-to-center): 170 mm*
Mains connection: 230 V / Frequency: 50/60 Hz
Operating voltage: 230 V
Weight: 3950 g
Protection class: IP 65

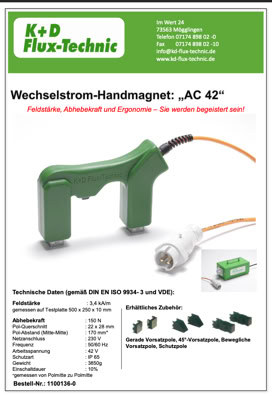

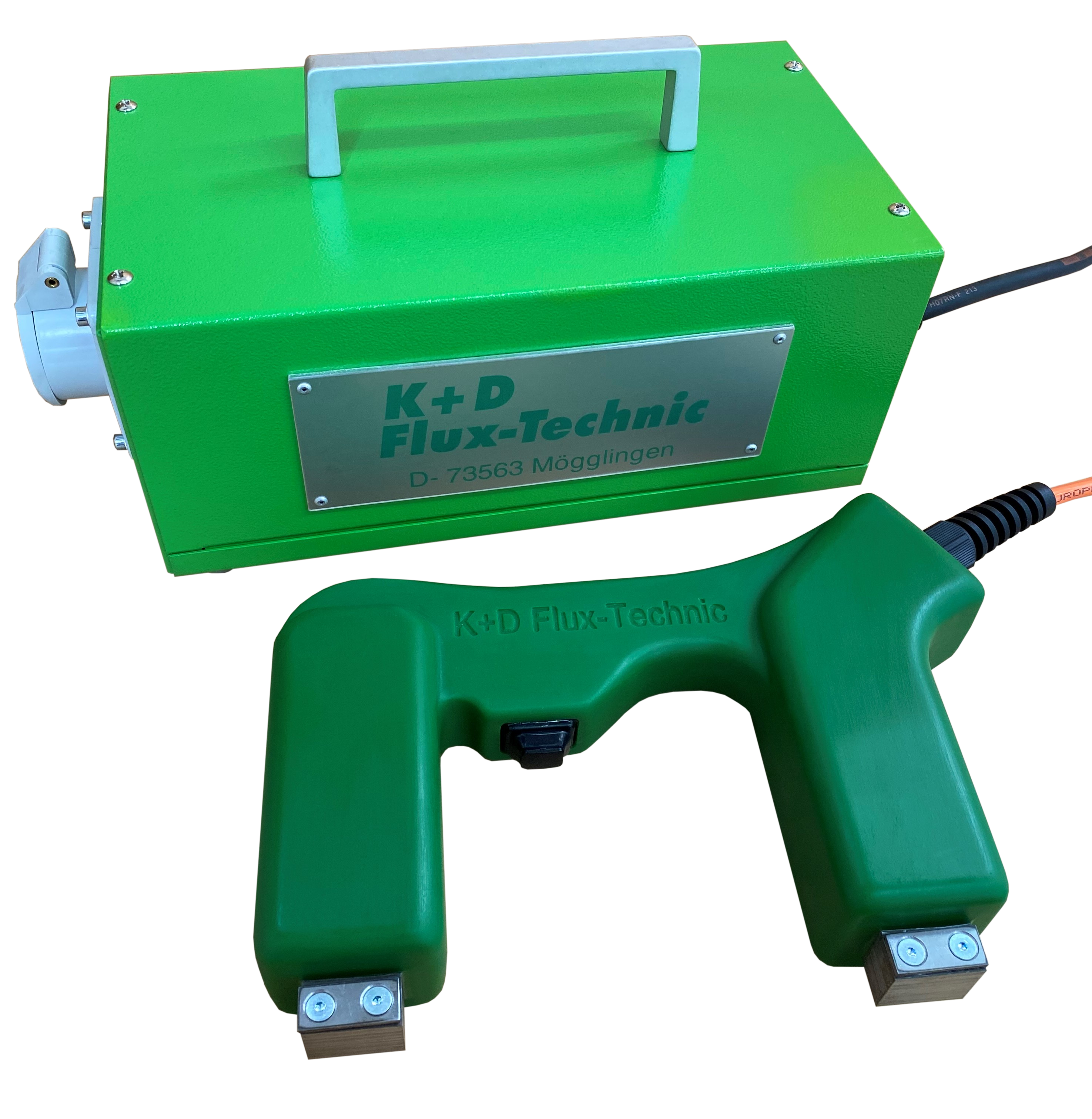

K+D AC 42 V3
Field strength: 3.4 kA/m measured on test plate
500 x 250 x 10 mm
Lifting force: 150 N
Pole cross-section: 22 x 28 mm
Pole spacing (center-to-center): 170 mm*
Mains connection: 230 V / Frequency: 50/60 Hz
Operating voltage: 42 V
Protection class: IP 65
Weight: 3850 g
*measured from pole center to pole center

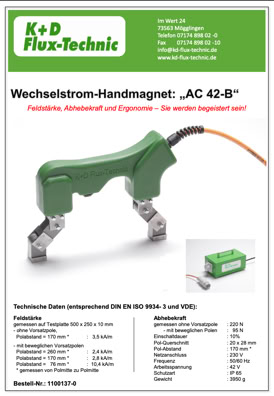

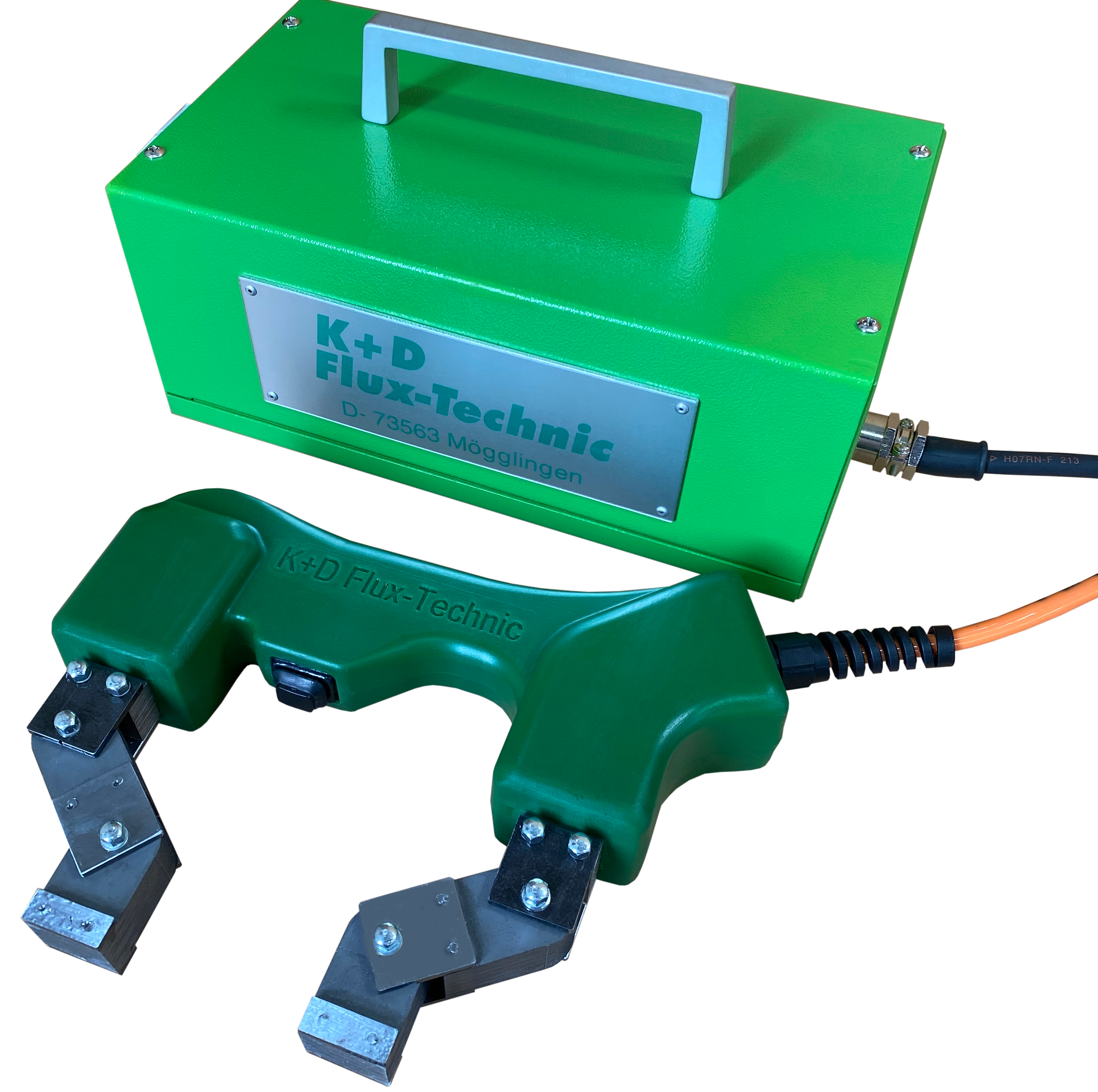

K+D AC 42-B V3
Field strength: 2.4 kA/m to 10.3 kA/m depending on the selected attachment poles. Measured on a test plate measuring 500 x 250 x 10 mm
Lifting force: 180 N
Pole cross-section: 22 x 28 mm
Pole spacing (center-to-center): 170 mm*
Mains connection: 230 V / Frequency: 50/60 Hz
Operating voltage: 42 V
Weight: 3950 g
Protection class: IP 65

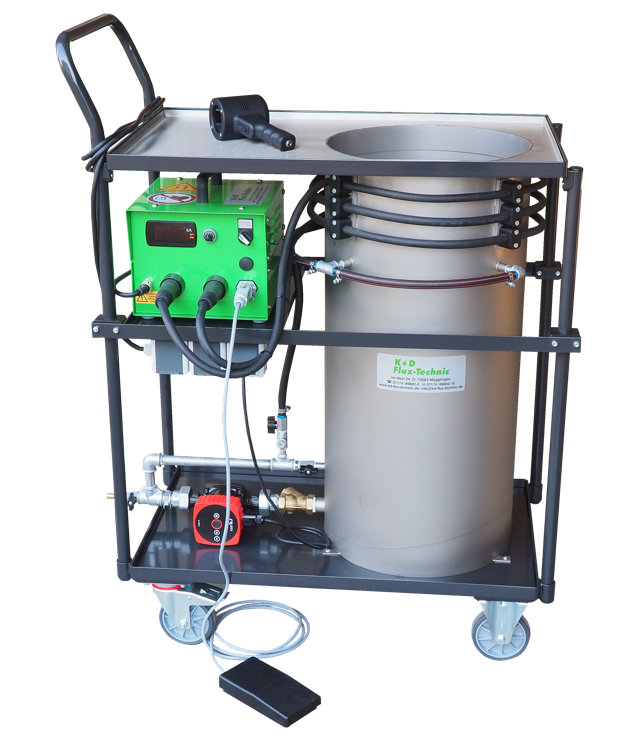

K+D Chain tester M
Chain testing device for magnetic particle testing of load and sling chains (mobile)
Portaflux 1000 mobile high-current generator
Transport trolley with 4 rubber-tired wheels, 2 of which are swivel casters with locking brakes.
Stainless steel worktop and test tray, clear diameter of test tray 410 mm
High-current magnetization coil made of copper with DIN connectors.
Ring shower with 4 x 90 degree spray nozzles
Test equipment pump with bypass

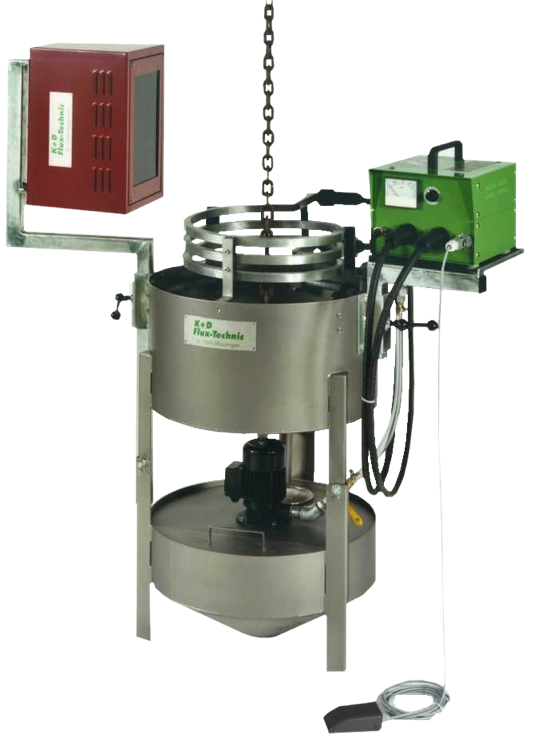

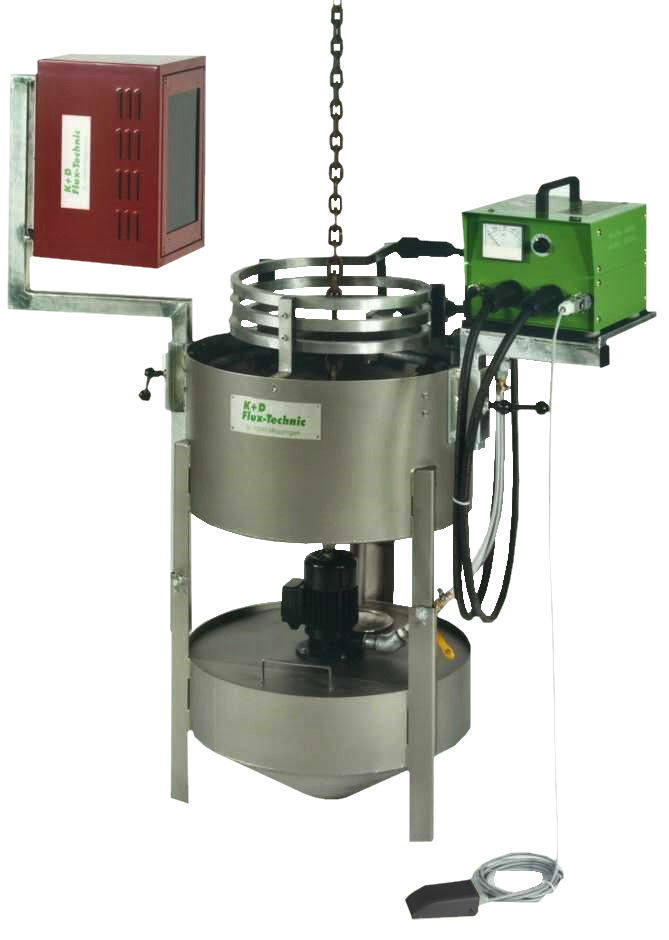

K+D Chain tester T
Chain testing device for magnetic particle testing of load and sling chains (separable)
Portaflux 1000 mobile high-current generator
Stainless steel test tank and pump container Clear diameter
of test tank 410 mm
High-current magnetization coil made of aluminum with DIN connectors.
Ring shower with 4 x 90 degree spray nozzles
Test equipment pump with bypass

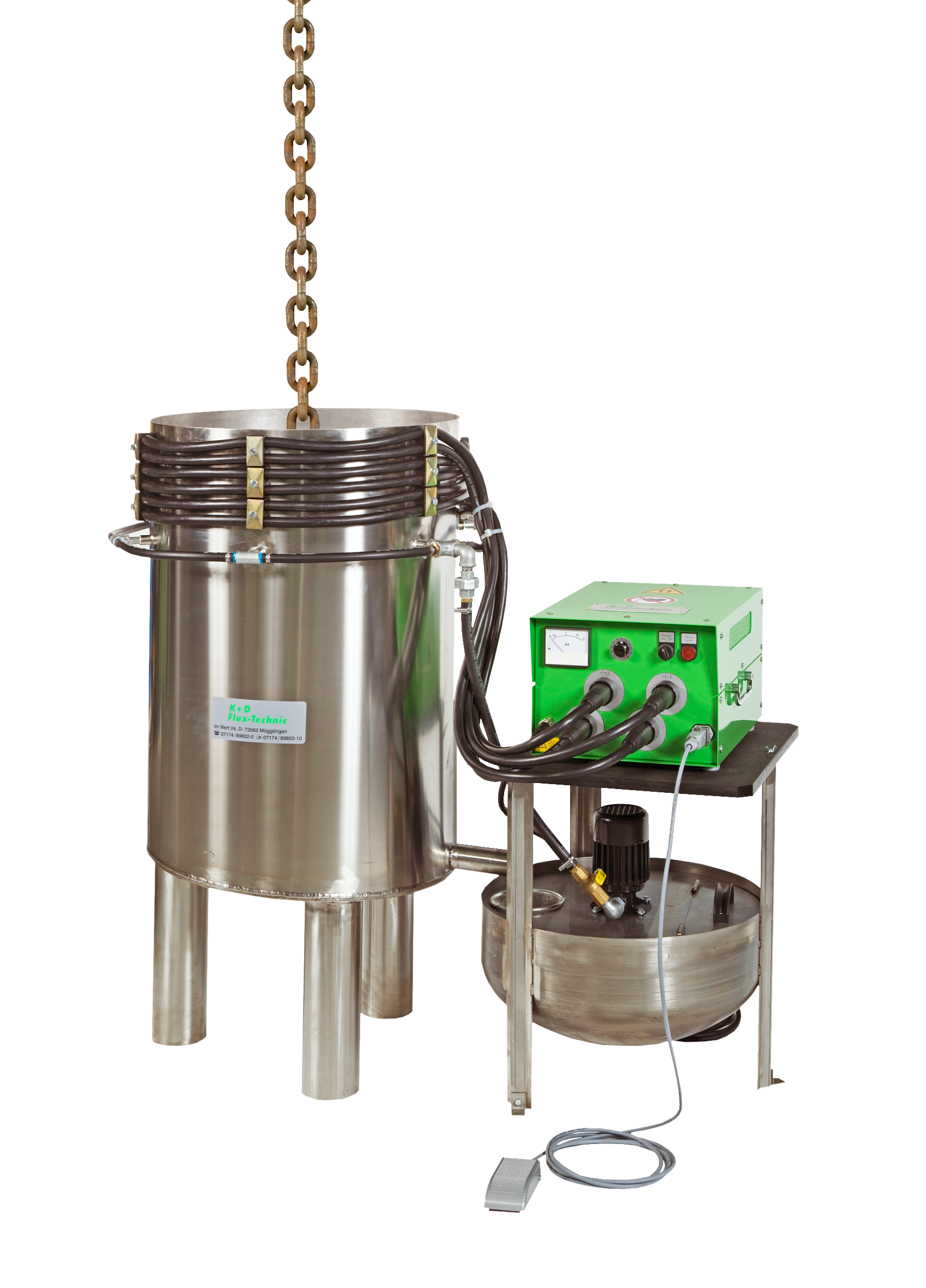

K+D Chain tester MAX
Chain testing device for magnetic particle testing of heavy load and sling chains
Portaflux 2000 mobile high-current generator
Stainless steel test tank and pump container, clear diameter of test tank 410 mm
High-current magnetization coil made of copper with DIN connectors.
Ring shower with 4 x 90 degree spray nozzles
Test equipment pump with bypass
