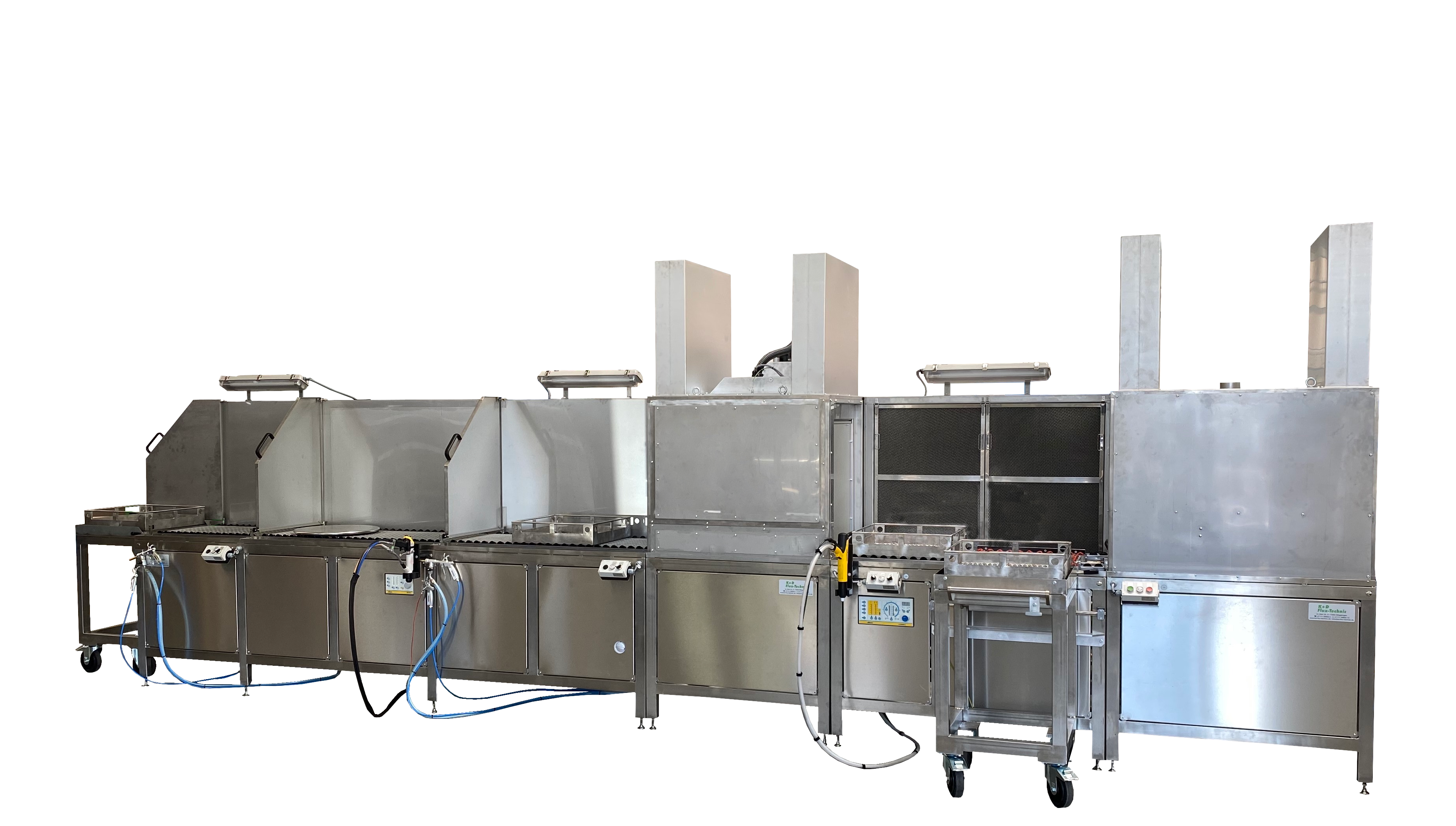

Fully automated PT line for reproducible process reliability

The fully automated line performs all steps of this testing procedure without manual intervention:

1.    Application of the penetrant by immersion.

2.    Exposure time under controlled conditions.

3.    Removal of excess penetrant (washing).

4.    Drying process (oven).

5.    Application of developer (vortex chamber).

6.    Inspection by an employee.

Advantages:

Reproducibility: Each test step is performed in exactly the same way → high process reliability.

Documentation & traceability: All test results can be saved automatically.

Compliance with standards: Meets international testing standards (e.g., EN ISO 3452 for PT).

Efficiency: Large quantities can be tested, less personnel required.

The penetration system for the application of a RED/WHITE or FLUORESCENT testing system with E-static

and designed for up to 500 kg consists of the following components:

Penetration station (RED) for penetration with drip area including suction

Washing station for intermediate cleaning

Station for dry development (WHITE) and evaluation including suction

Penetration station (RED/FLUORESCENT) for penetration with drip area including suction.

Clear container dimensions: Length 1200 mm (left: 500 mm; right 700 mm), width 630 mm, depth 740 mm

Immersion basin on the left, drip area on the right with drain into the tank Washing station for intermediate cleaning

Clear container dimensions: Length 1200 mm (left: 500 mm; right: 700 mm), width 630 mm, depth 740 mm

Station for dry development (WHITE) and evaluation, including extraction Foldable splash guards Turntable with 500 kg load capacity

Dimensions: length 1200 mm, width 630 mm, depth 300 mm

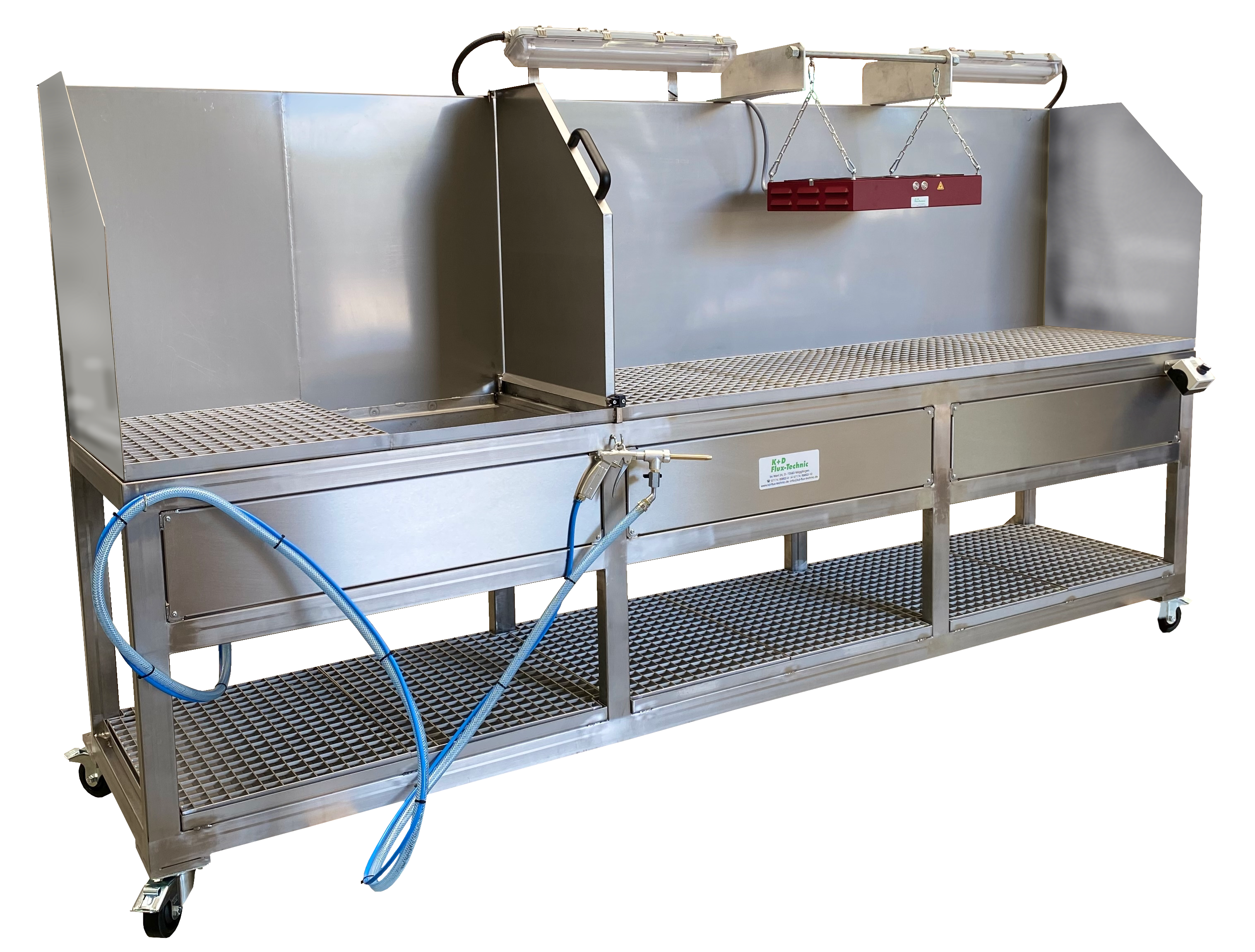

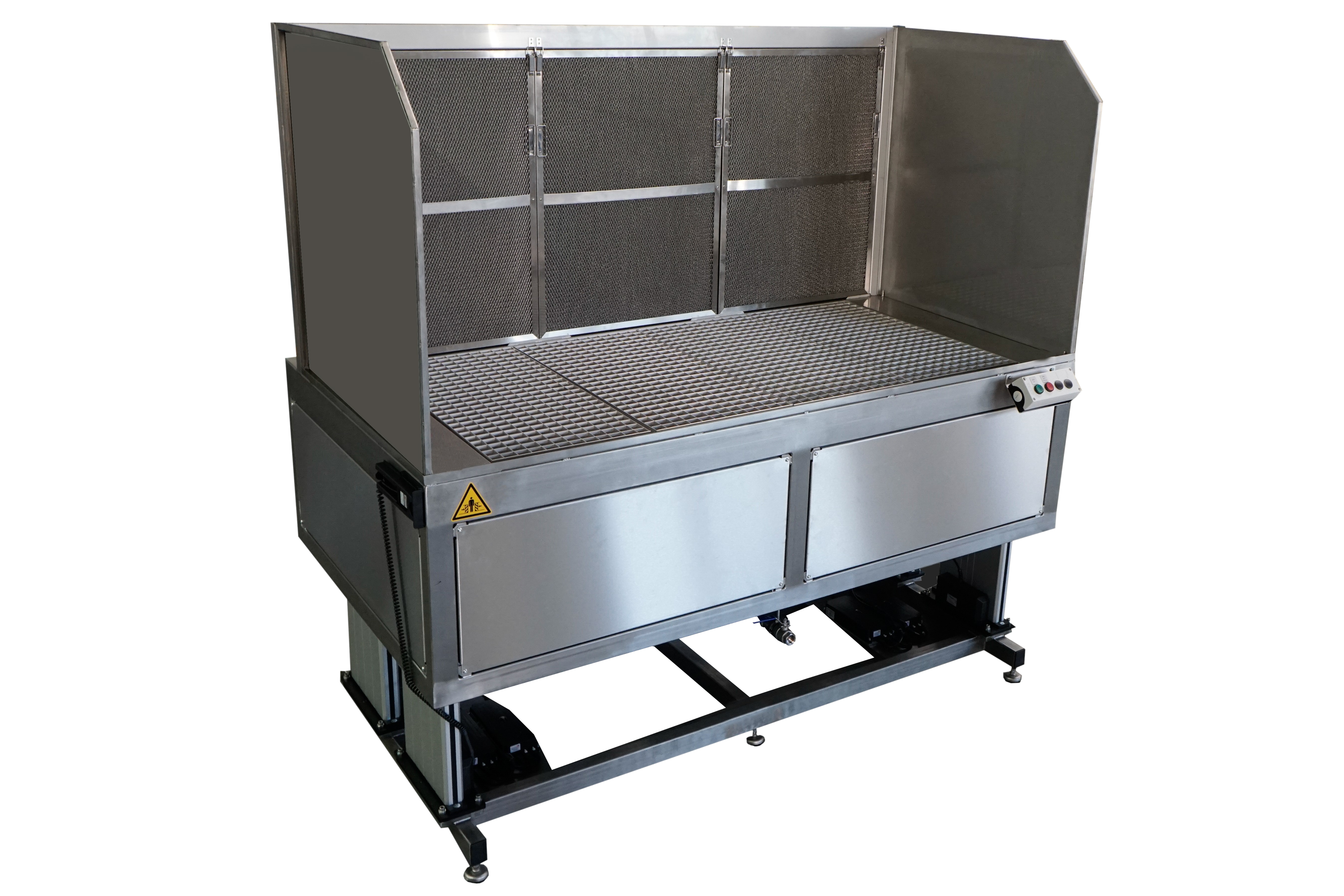

PT-Table with electro-mechanical height adjustment for use with a RED/WHITE or FLUORESCENT testing system.

- Frame including stainless steel tray

- Electromechanical height adjustment

- Can be positioned on 3 levels with inserted grating

- Extraction fan via knitted fabric and fine filter

- Load capacity 1000 kg

- Working heights from 750 mm to 1000 mm

- Guided lifting movement

- 3 users and thus 3 different height settings programmable.

Clear dimensions: Length: 1000 mm, width: 2000 mm, depth: 500 mm

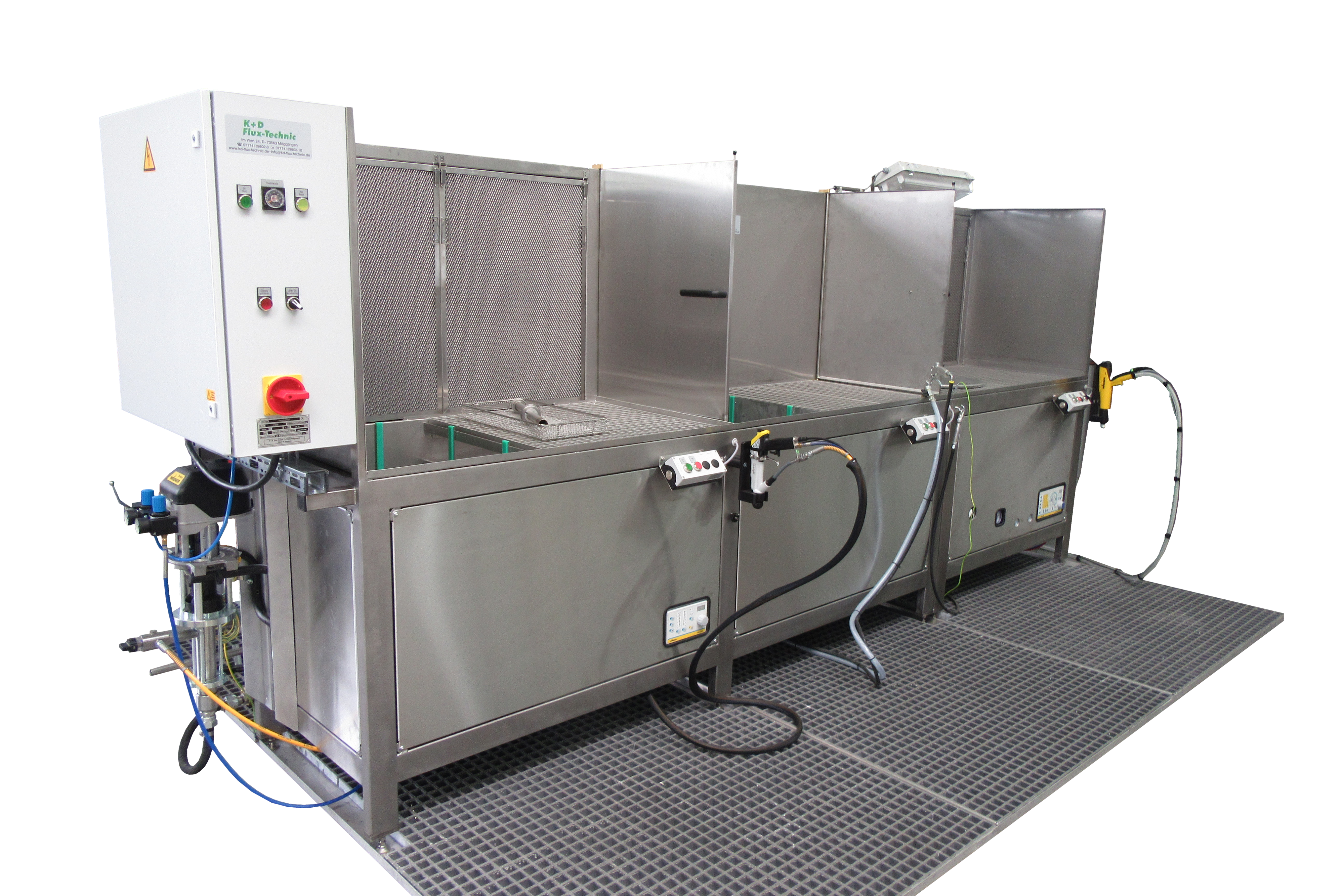

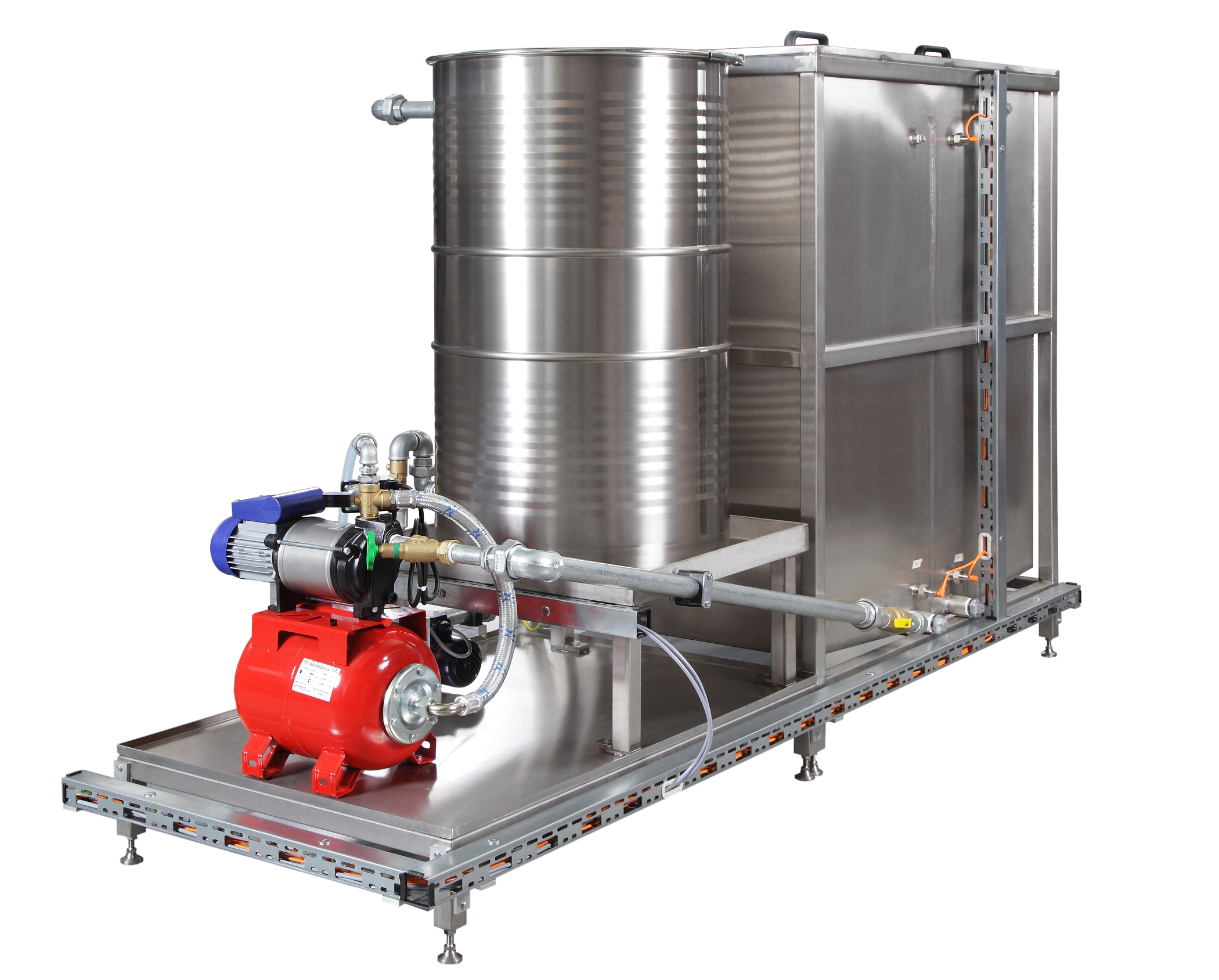

Manual penetration system with E-static developer station for use with a FLUORESCENT inspection system.

Penetration station for immersion penetration with drip area



Emulsifier station

Washing station for intermediate cleaning with instantaneous water heater

Drying chamber

Station for dry development (WHITE) with E-static incl. extraction

Viewing station with darkroom and UV lighting

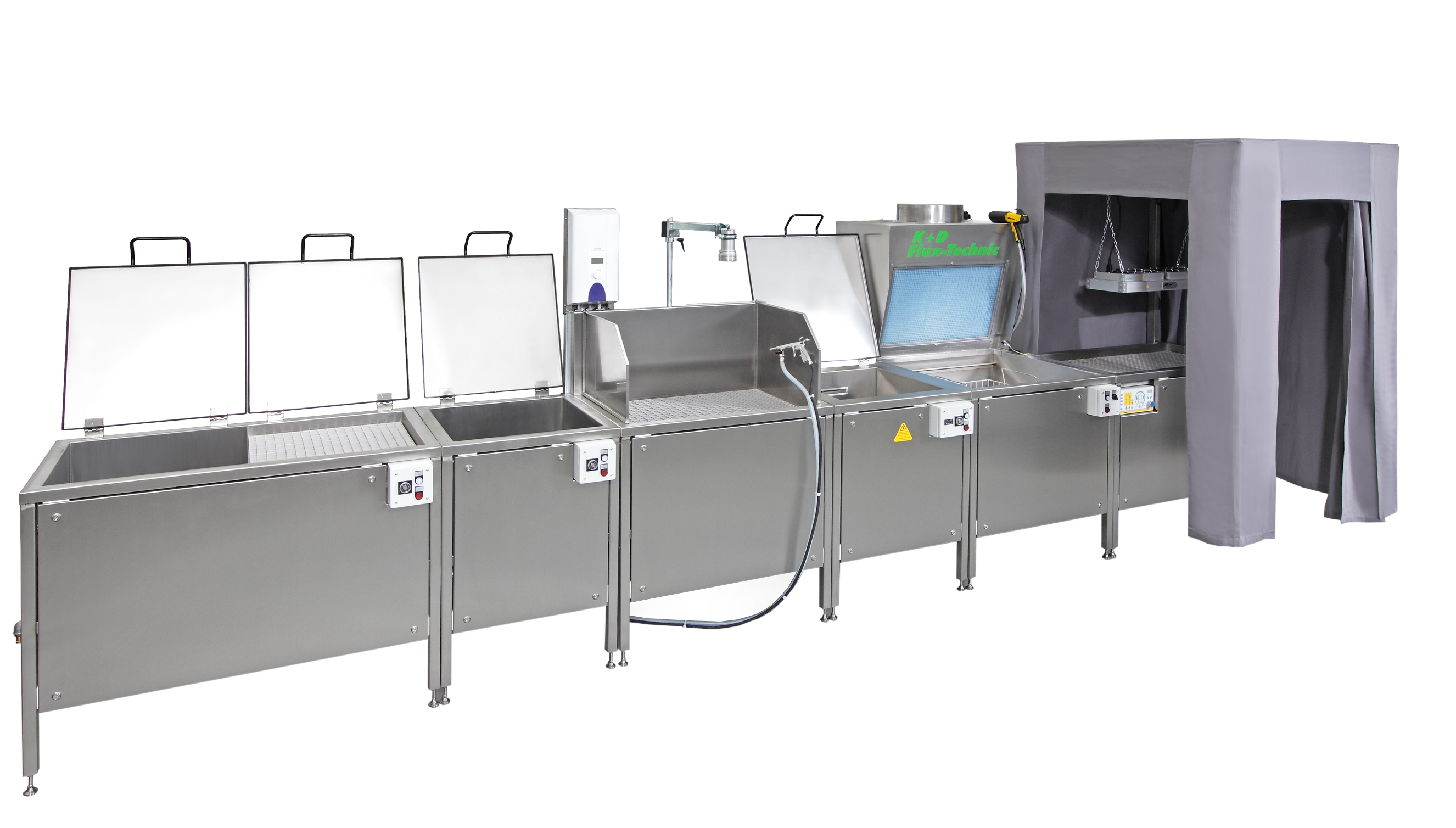

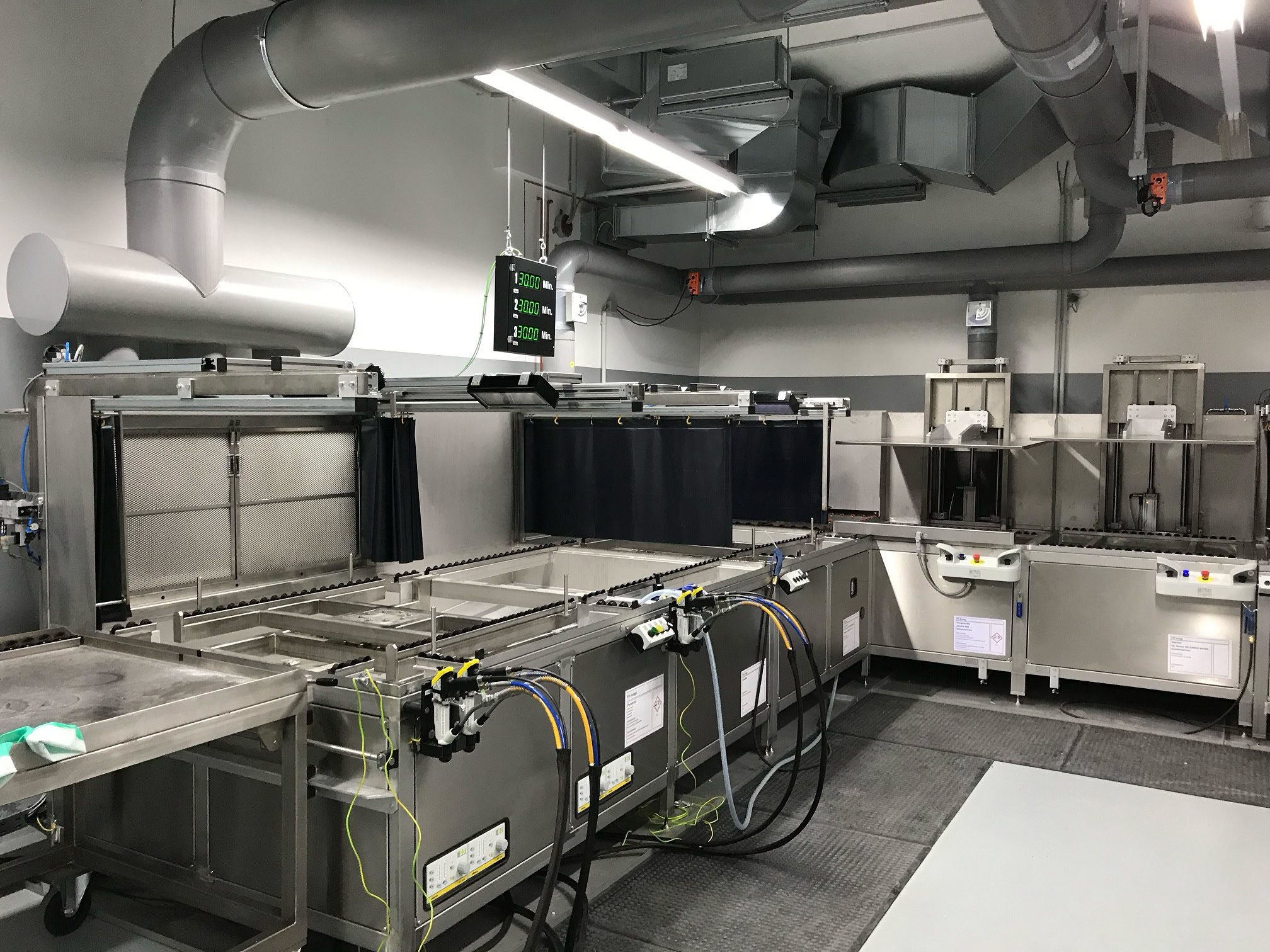

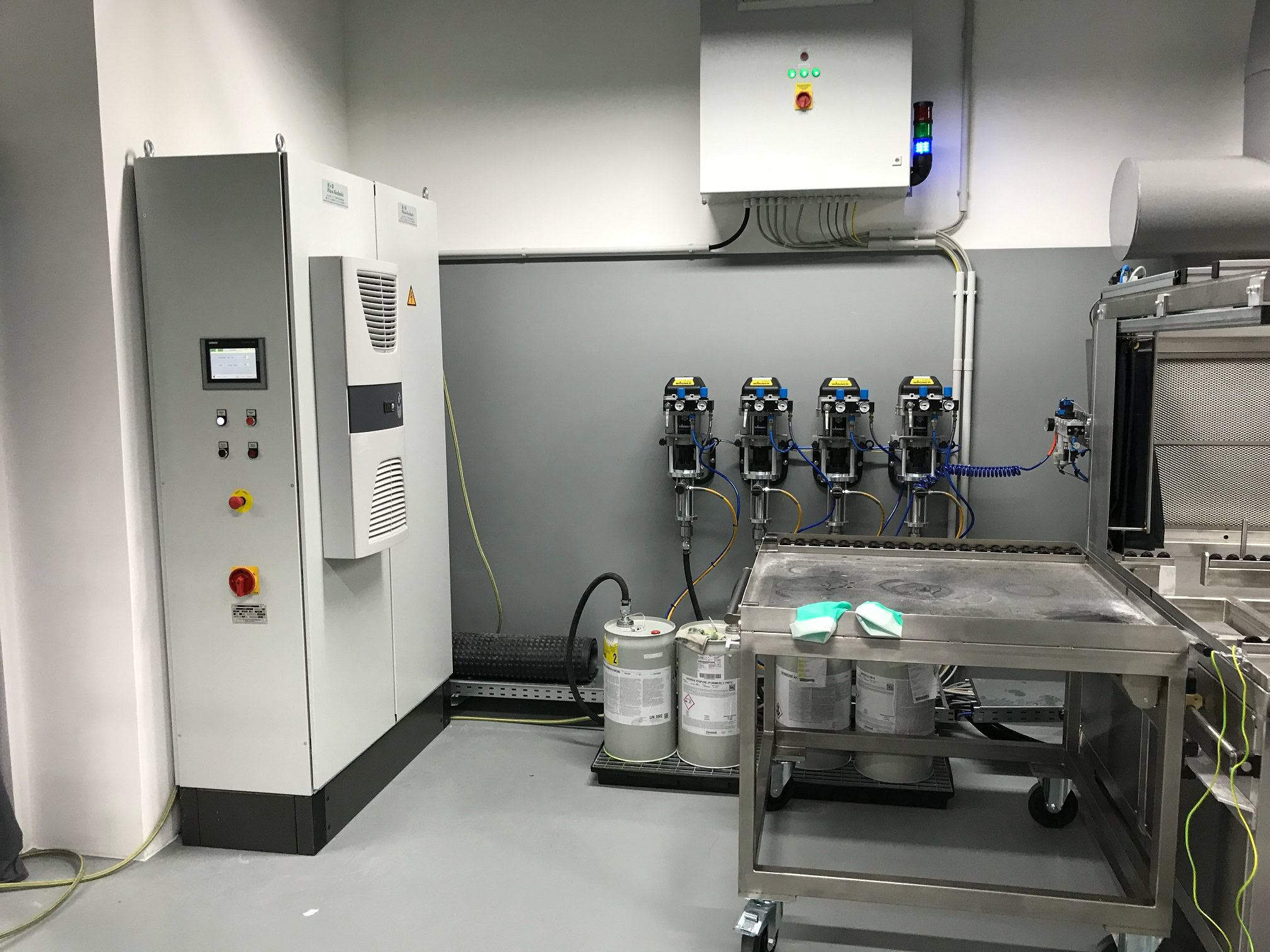

Semi-automatic penetration testing system with E-static for use with a FLUORESCENT testing system.

Penetration station with 4 different testing devices for each testing device E-static unit for penetration

Basket system for easy transport of components, with lifting and rotating units



Emulsifier stations

Washing station for intermediate cleaning

Drying oven

Station for dry development (WHITE) including extraction

2x viewing station with darkroom and UV lighting

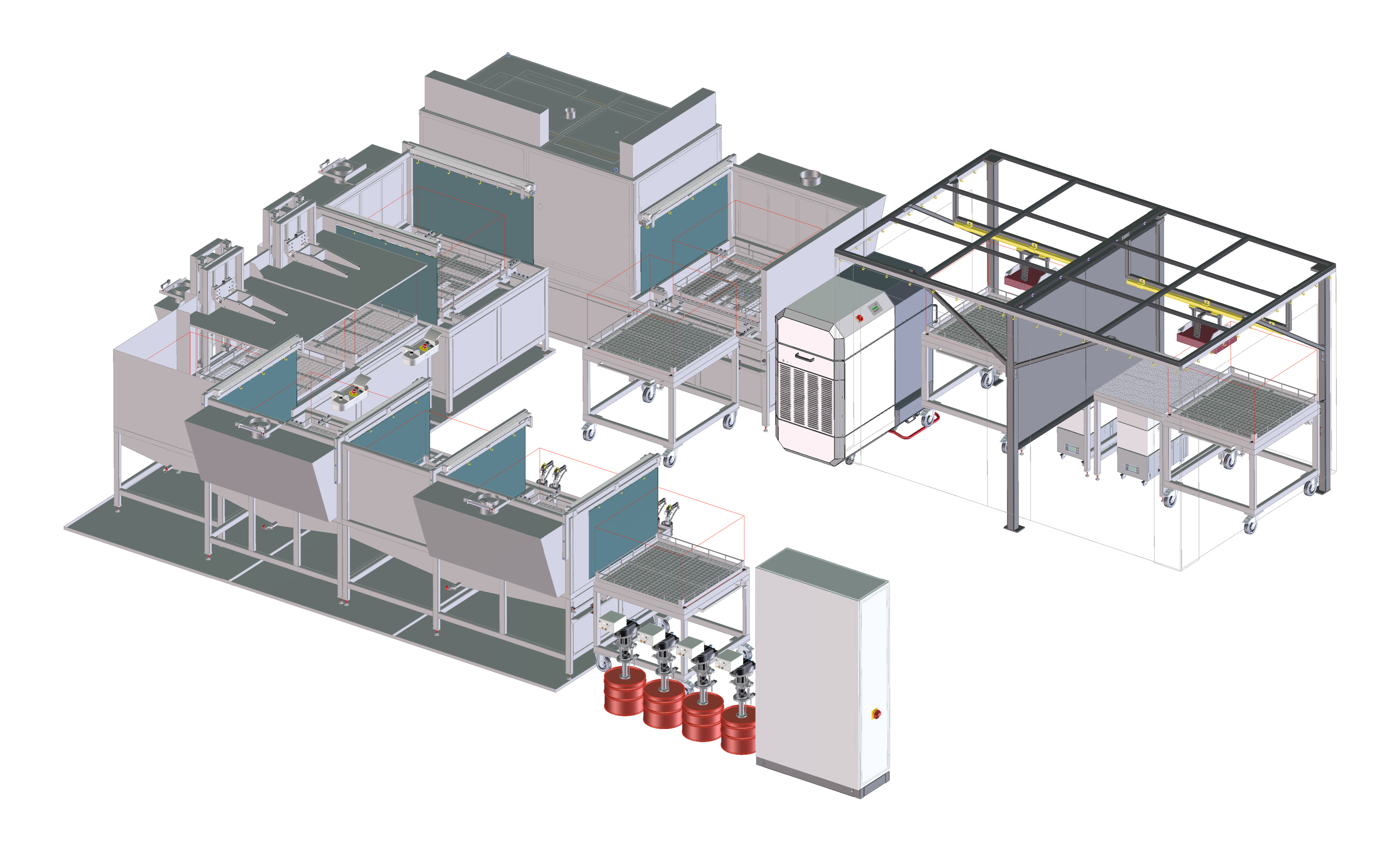

Penetration line with transport baskets

PT-E-Statik, E-Statik developer, drying oven, and parts washing system.

Special trolleys are used to transport baskets outside the system.
