DEMONSTRATION DEVICE / TRADE FAIR DEVICE (SPECIAL COLOR)

with minor cosmetic flaws (paint)

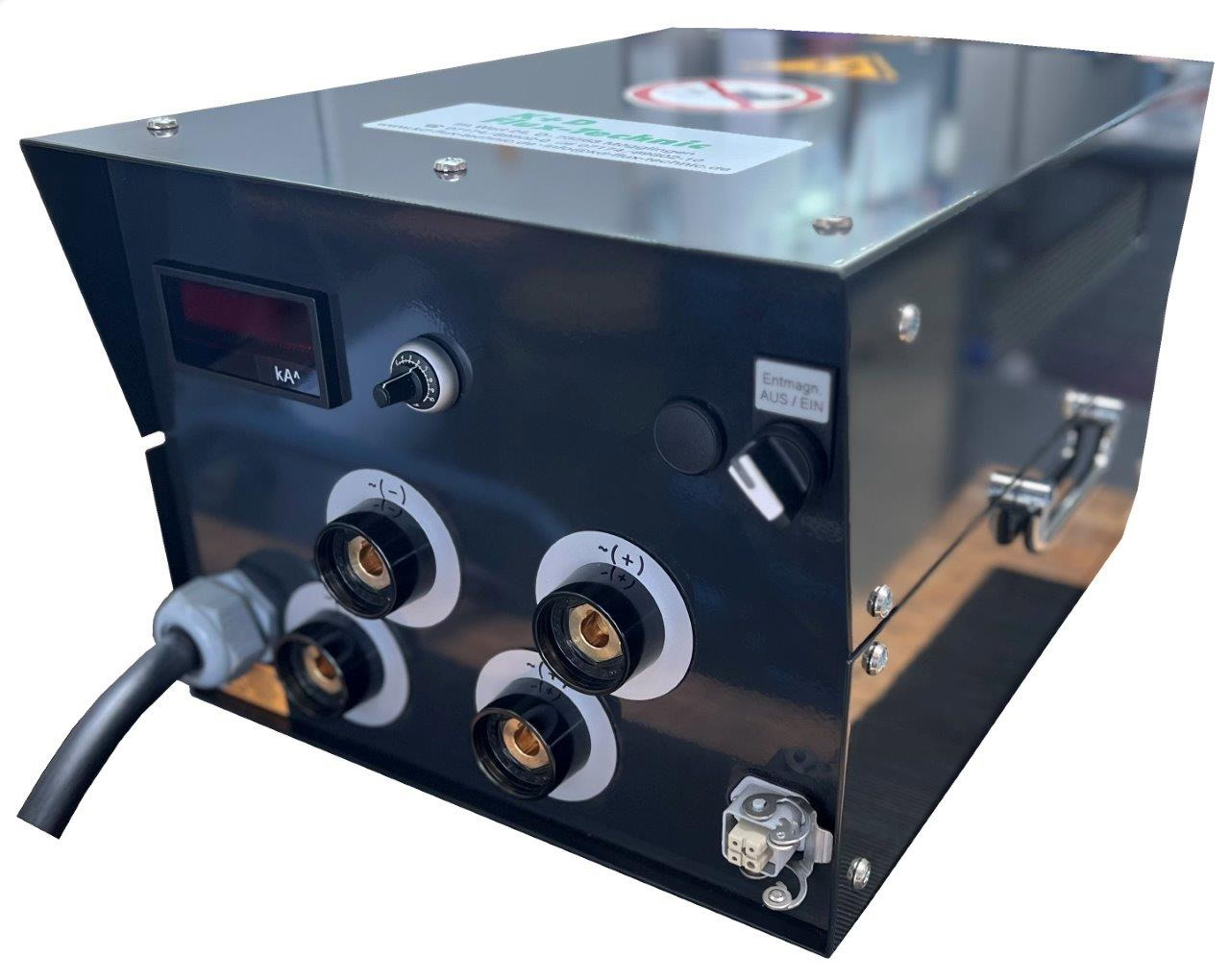

PORTAFLUX 4000

SALES PRICE ON REQUEST

DISPLAY DEVICE / MEASURING DEVICE

Portaflux 4000

Technical data according to DIN 9934-1-3

- Test current: alternating current

- Test current, effective: max. 2830 A

  Peak: max. 4000 A

- Test current control: infinitely variable, electronic

- No-load voltage: 8.0 V

- Duty cycle, relative: 30%

  absolute: 6 sec. on - 14 sec. off

All data measured via:

- High-current cable, length: 2 cable sets, each  3 m

  Cross-section: 190 mm² = 2 cables, each  95 mm²

- Workpiece, length: 900 mm

  Cross-section: 80 x 4 mm

Device dimensions and weights:

- Length: approx. 520 mm

- Width: approx. 360 mm

- Height: approx. 290 mm

    - Weight with high-current cable

      and electrodes : approx. 87 kg

Mains connection: 400 V, 3-phase

Frequency: 50 Hz

Power consumption: approx. 29 kVA
