UV LED HAND-HELD LIGHTS

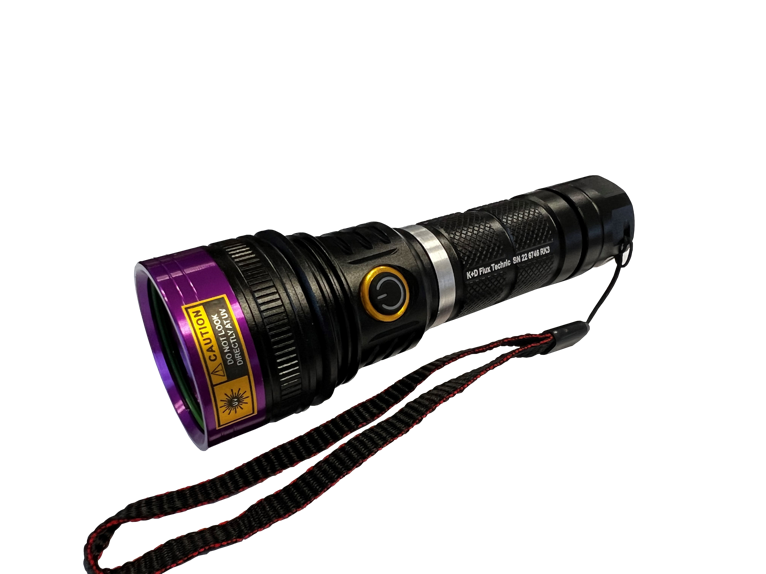

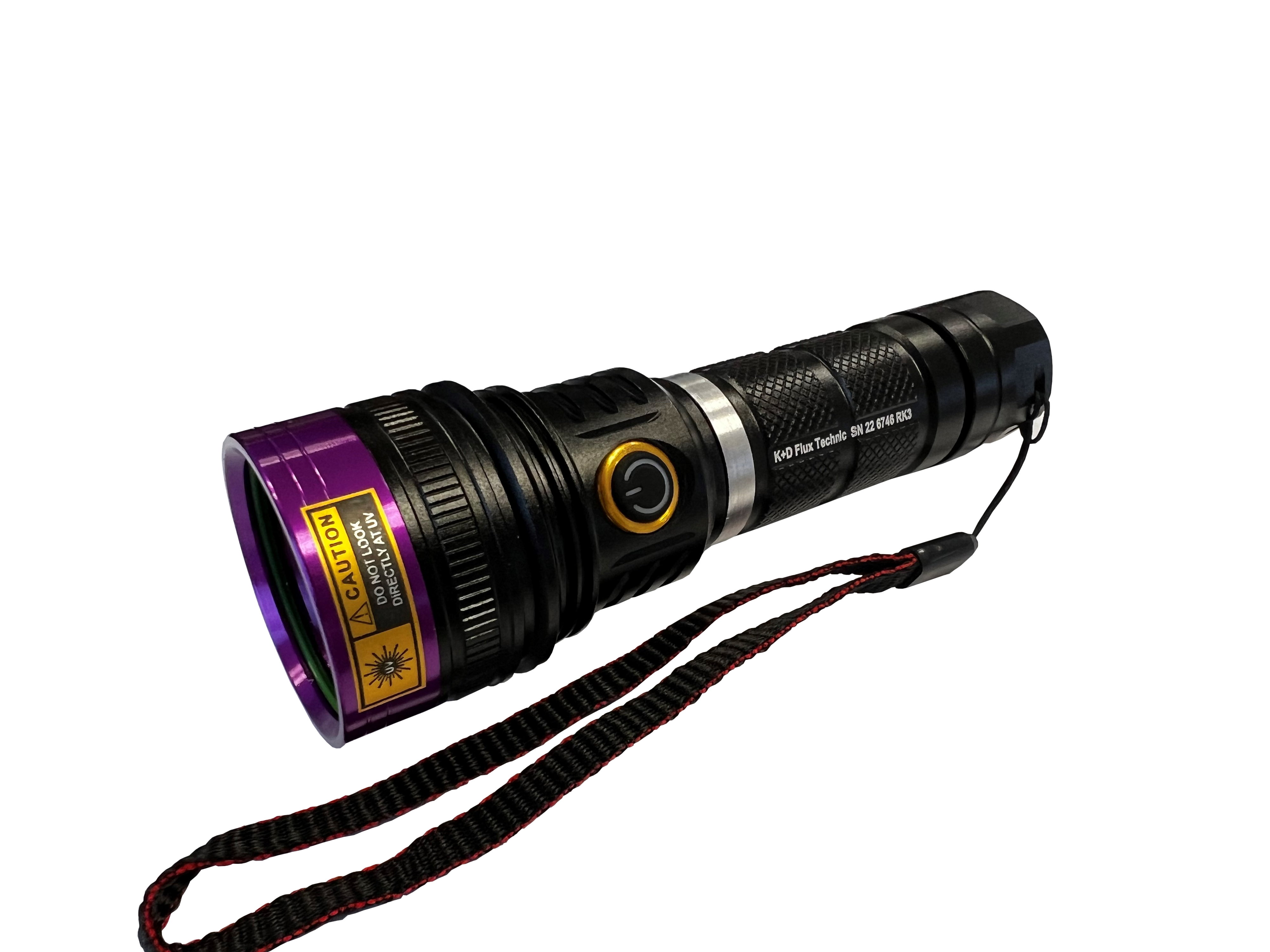

K+D UVL - 20 LED rechargeable flashlight
Includes carrying case, lithium-ion battery, UV protective glasses, charging cable, and charger.
Reflectors and special cooling system for long LED service life.
Intensity approx. 10,000 µW/cm² (distance 400 mm).
Wavelength 365 nm (tolerance range < 2 %)
Illuminated switch
Direct charging via USB-C interface
Battery life: up to approx. 300 charging cycles Risk class 3
In accordance with DIN-EN ISO 9934, DIN-EN ISO 3452, DIN-EN ISO 3059

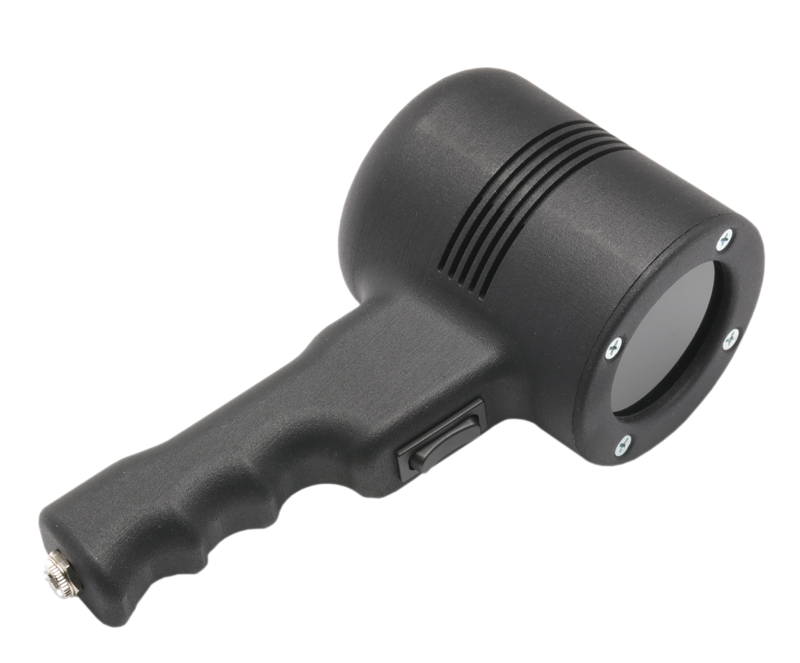

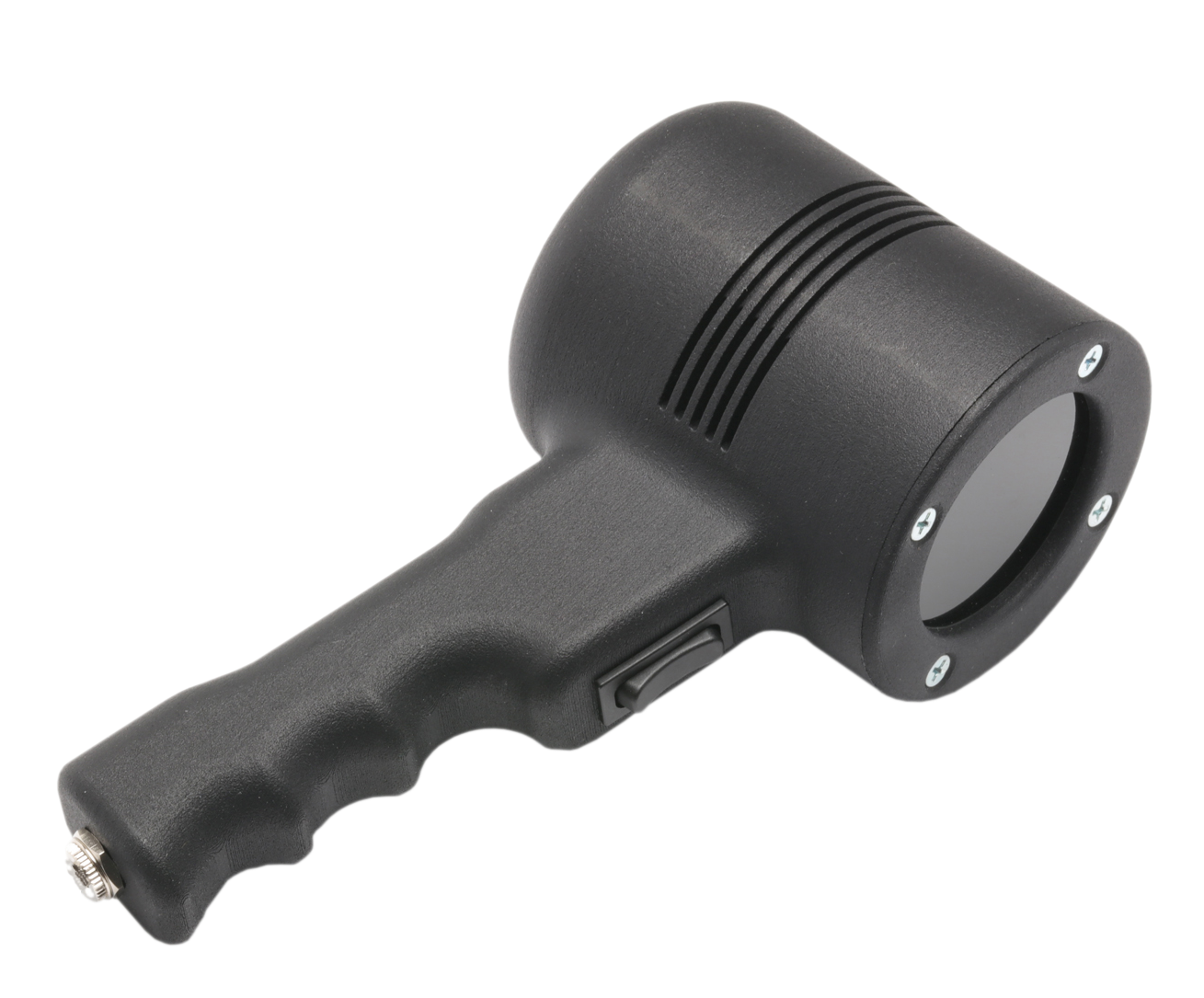

K+D UVL - 50 LED
Lightweight at only 583 g
Reflector, cooling system, plug-in power supply (1.8 m connection cable), and suspension eyelet
Intensity ~4100 µW/cm (distance 400 mm)
Illumination area Ø 210 mm (> 1000 µW/cm²)
White light component ≤ 10 lx
Wavelength 365 nm (tolerance range ± 1 %)
Switch with 2 positions: bottom momentary (for touch operation), top latching (for continuous operation)
- Connection power supply: 100-240 V, 50/60 Hz Risk class 2 (according to EM6)
Low power consumption
In accordance with DIN-EN ISO 9934, DIN-EN ISO 3452, DIN-EN ISO 3059

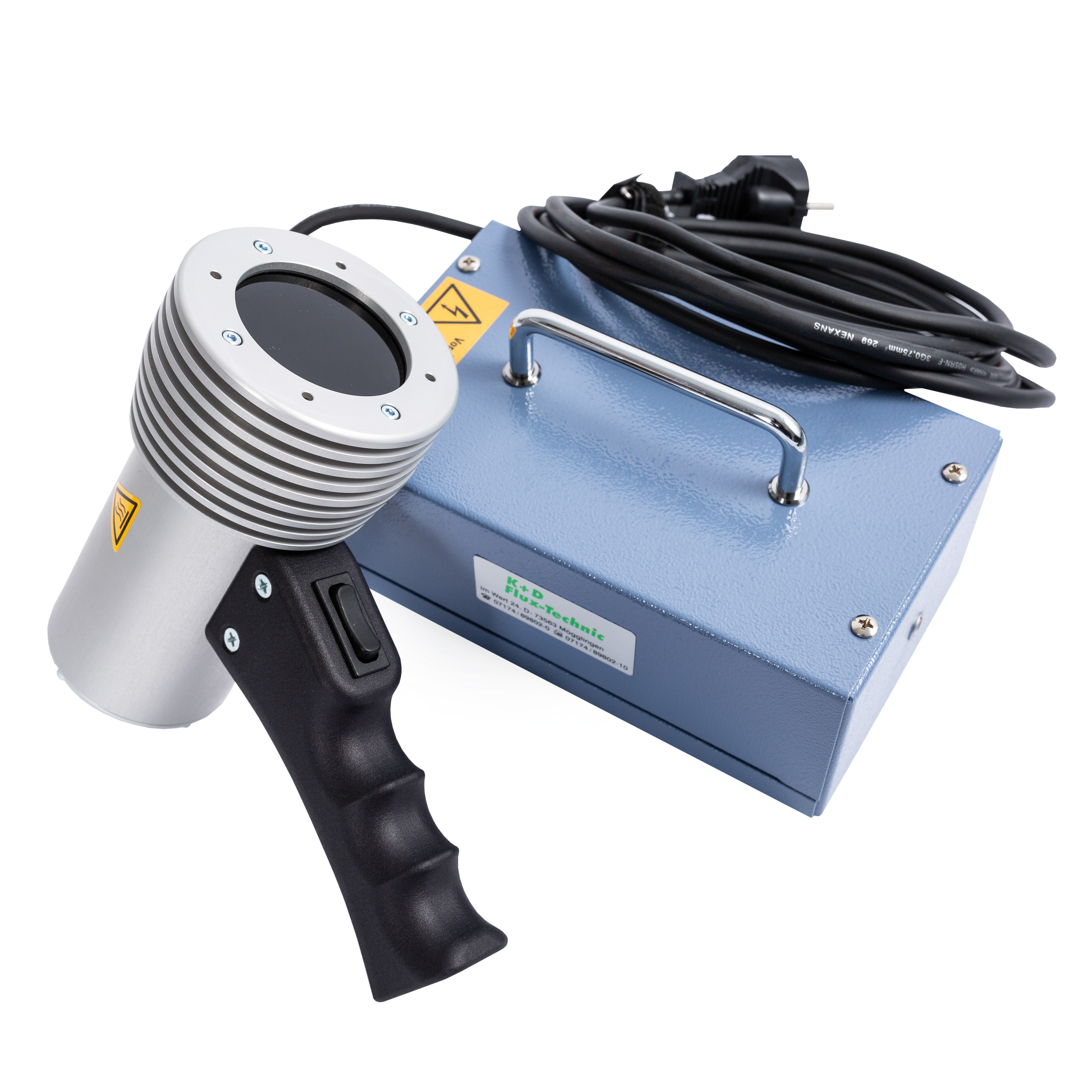

K+D UVL - 200 LED
Reflector, cooling system, and power supply (3 m connection cable)
Intensity 5300 µW/cm (distance 400 mm)
White light component ≤ 10 lx
Wavelength 365 nm (tolerance range ± 1 %)
Switch with 2 positions for UV radiation: bottom momentary (for touch operation), top latching (for continuous operation)
Connection power supply: 230 V/50 Hz Risk class 2 (according to EM6)
Switchable to 4 integrated white light LEDs
No additional heat load for test personnel
Low power consumption

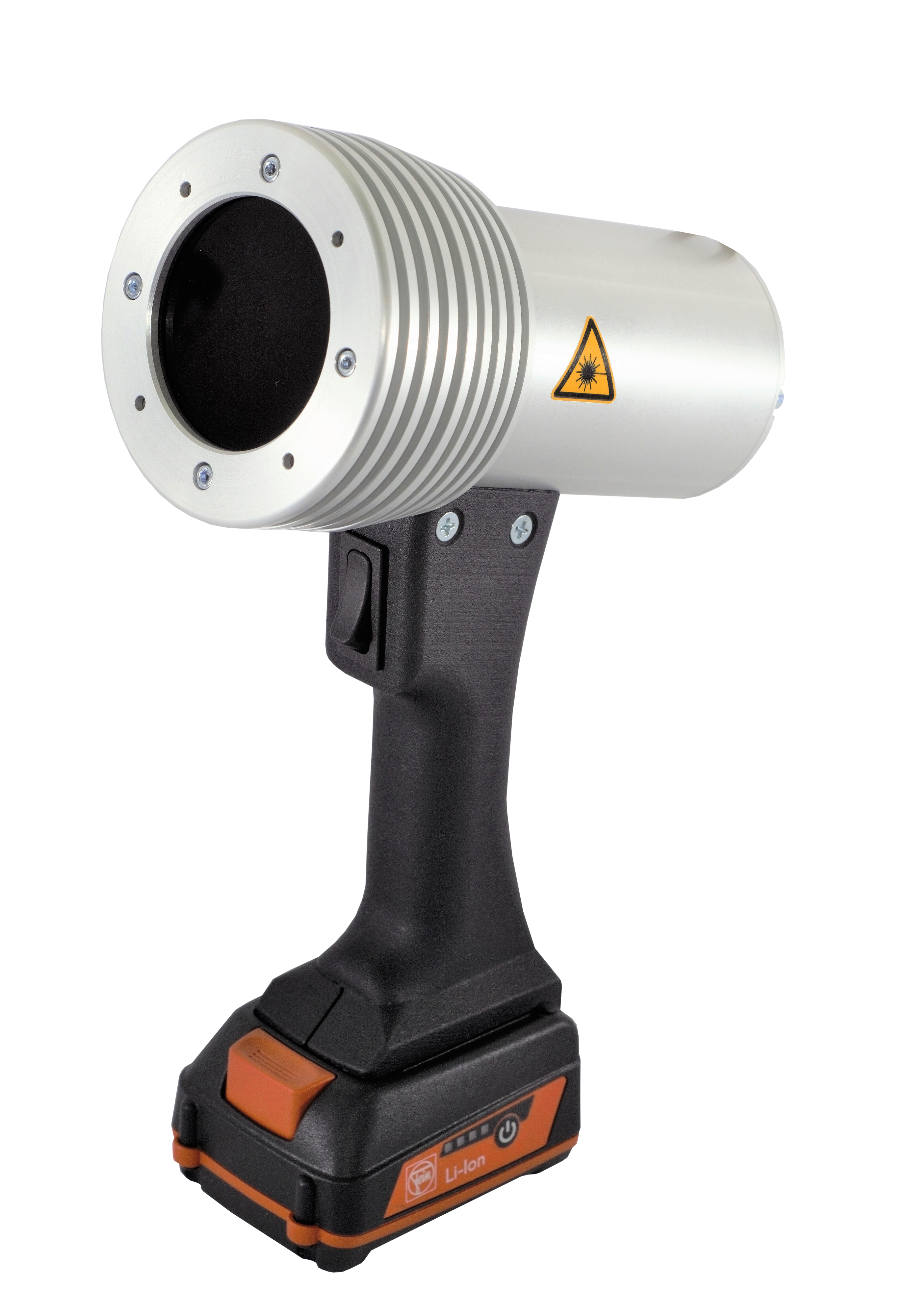

K+D UVL - 300 LED Akku
Includes lithium-ion battery and charger
(100V-230 V AC 50-60 Hz)
Reflectors and special cooling system for long LED service life
Intensity approx. 5300 µW/cm² (distance 400mm)
4 integrated daylight LEDs - 900 lx (distance 200 mm)
White light component ≤ 10 lx
Wavelength 365 nm (tolerance range < 1 %)
Switch with 2 positions for UV radiation: bottom momentary (for touch operation), top latching (for continuous operation)
Operating time ≈ 90 min at an intensity >5000 µW/cm²
Battery life: up to approx. 500 charging cycles Risk class 2
According to DIN-EN ISO 9934, DIN-EN ISO 3452,
DIN-EN ISO 3059
