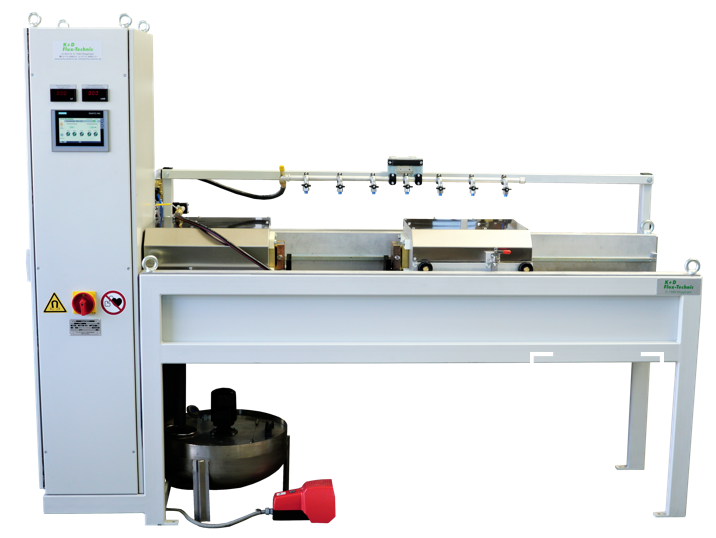

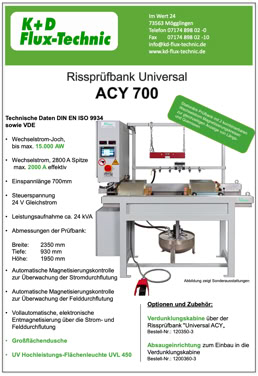

K+D Universal ACY-700

Stationary test bench with 2 combinable alternating current magnetization circuits for simultaneous display of longitudinal and transverse cracks.

Current fluxing / induction fluxing and yoke magnetization.

Clamping length 40-700 mm. Includes automatic magnetization control.

AC fluxing   2000 A

AC yoke magnetization  14 KAW

Demagnetization in both circuits

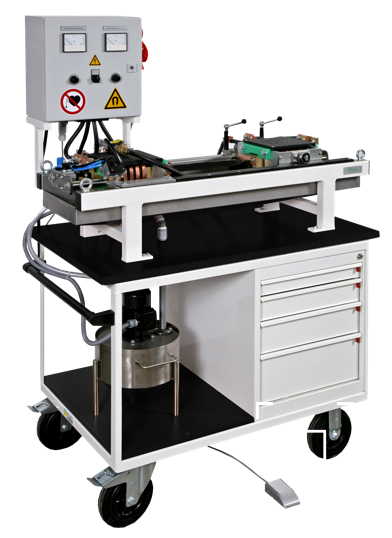

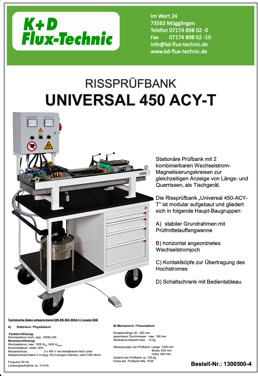

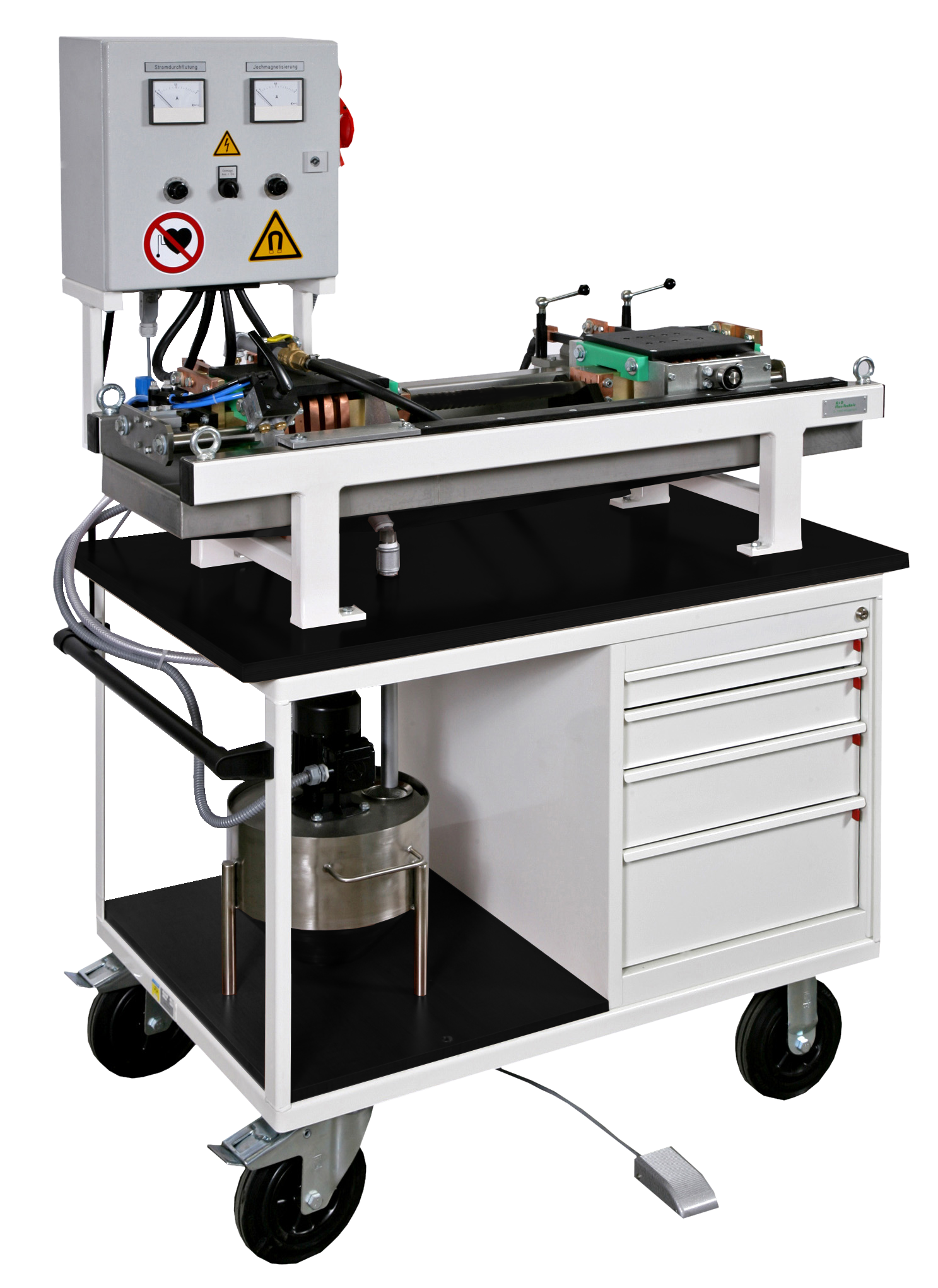

K+D Universal ACY - 450

Stationary test bench with 2 combinable alternating current magnetization circuits for simultaneous display of longitudinal and transverse cracks.

Current fluxing / induction fluxing and yoke magnetization.

Clamping length 40-450 mm. Includes automatic magnetization control.

Table design can be used mobile for small series.

AC fluxing 1000 A,

AC yoke magnetization 9 kAW,

demagnetization in both circuits,

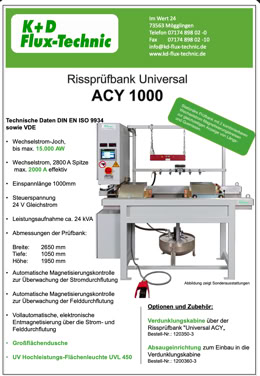

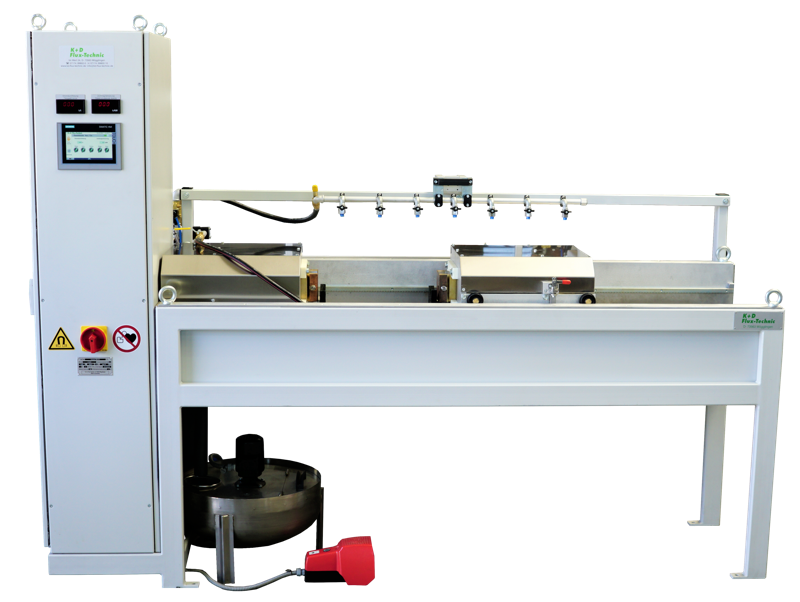

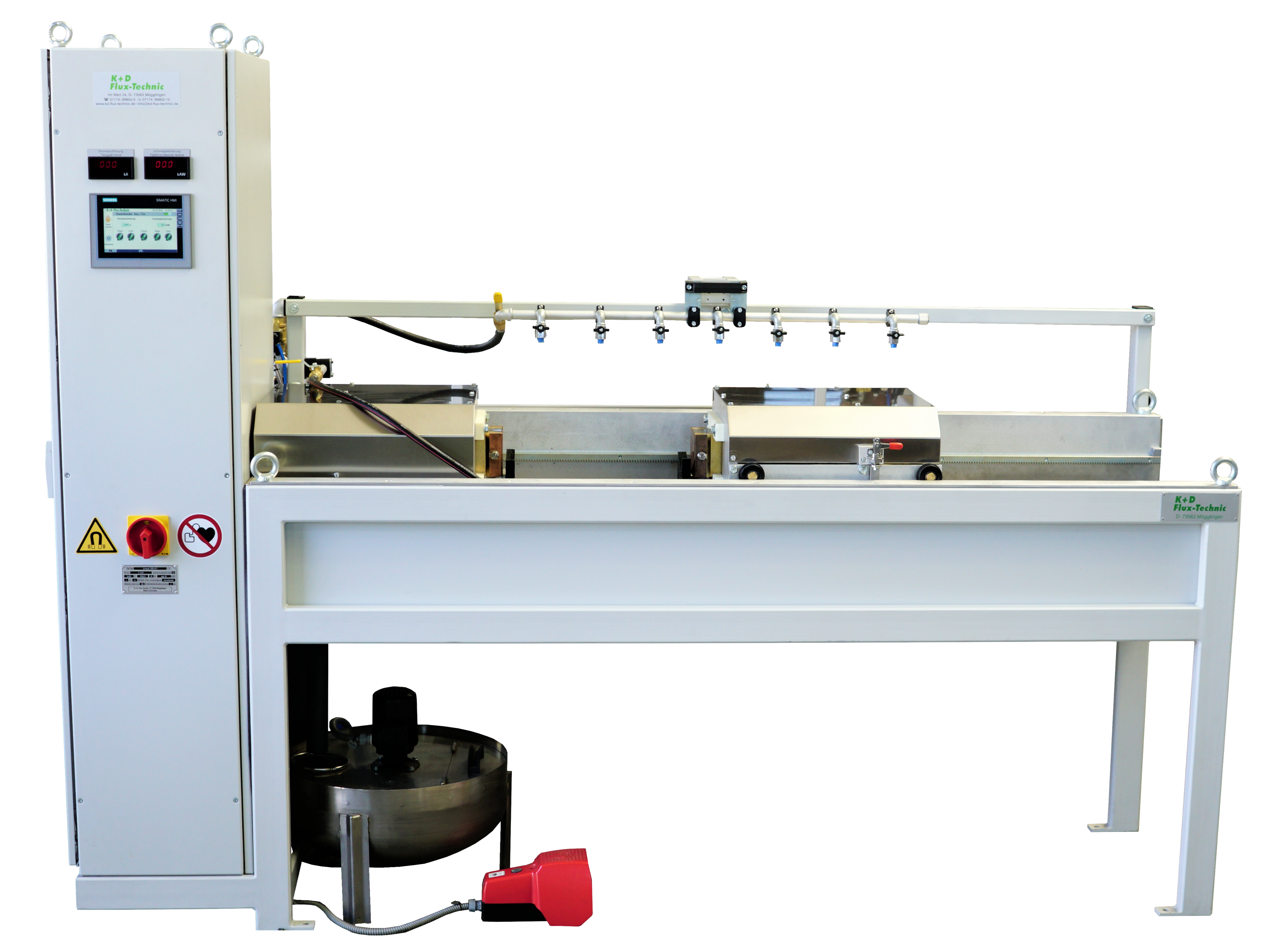

K+D Universal ACY-1000

Stationary test bench with 2 combinable alternating current magnetization circuits for simultaneous display of longitudinal and transverse cracks.

Current fluxing / induction fluxing and yoke magnetization.

Clamping length 40-1000 mm. Includes automatic

magnetization control.

AC fluxing   2000 A

AC yoke magnetization  15 KAW

Demagnetization in both circuit
